Schneider Electric Altivar 320 Variable Speed Drive

Description

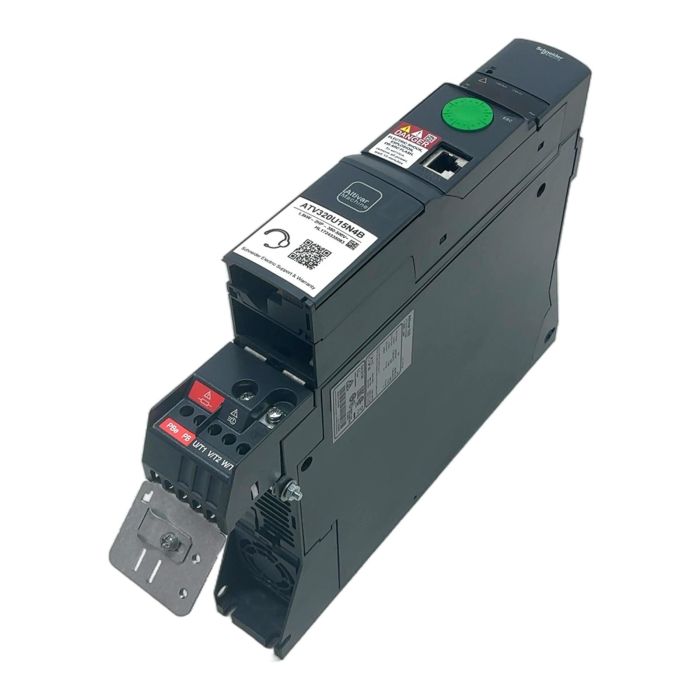

The ATV320U15N4B is a variable speed drive from the Altivar Machine 320 series, designed for simple and advanced machine requirements. This drive provides reliable control for three-phase asynchronous and synchronous motors. With a power rating of 1.5 kW (2 HP) and a voltage range of 380-500V, it is a versatile solution for numerous industrial applications, featuring a compact book-style form factor for easy integration into control cabinets. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Series: Altivar Machine 320
• Model: ATV320U15N4B
• Power Rating: 1.5 kW / 2 HP
• Input Voltage: 380 to 500 V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Nominal Output Current: 4.1 A
• Output Frequency: 0.1 to 599 Hz
• Enclosure Rating: IP20
• Communication Port: Modbus serial, CANopen

Label Info

• V2.7 IE30
• Motor Overload Protection class 10
• INERIS 16ATEX0042X
• UL Listed 170M

Application

This drive is ideal for applications in material handling, packaging, textiles, hoisting, and general machine control where precise speed and torque control are required.

Country of Origin

Made in Indonesia.

CO2 Impact

Choosing this reused component prevents the emission of approximately 68 kg of CO2, which is comparable to the savings from driving a car for 340 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The 'B' or Book form factor, like this model, is designed for side-by-side mounting in control panels to save horizontal space. The 'C' or Compact form factor has a wider, shorter profile, which may be better suited for shallow enclosures.

No, this specific model (ending in N4B) is designed exclusively for a three-phase 380-500V input supply. For single-phase applications, you would need to select a different model from the Altivar series designed for 200-240V single-phase input.

The ATV320U15N4B natively supports Modbus serial and CANopen communication. For other protocols like EtherNet/IP, Modbus TCP, PROFINET, or EtherCAT, an optional communication module must be installed.
