Description: Altivar 320 Variable frequency drive - 380-500V - 0.37 kW - 0.5 HP - Book form - 3-phase, Include: Altivar - Communicatiemodule - Ethernet TCP/IP, VW3A3616, Product Info: Altivar Machine ATV320, product or component type, Speed ​​controller, product specific application, Complex machines, variant, Standard version, size of the drive, Book, mounting mode, Cabinet mounting, communication port protocol, Serial Modbus, CANopen, option card, Communication Module, CANopen, Communication Module, EtherCAT, Communication Module, Profibus DP V1, Communication Module, Profinet, Communication Module, Ethernet Powerlink, Communication Module, Ethernet/IP, Communication Module, DeviceNet, Our nominal supply voltage, 380...500 V - 15...10 %, nominal output current, 1.5 A, engine power kW, 0.37 kW for heavy duty, EMC filter, Class C2 EMC filter integrated, IP protection degree, IP20, Complementary, number of digital inputs, 7, Label-Info: Altivar 320, ATV320U04N4B, 0.37kW-1/2HP, V2.7 IE30, kW, HP, U(V) input, 380-500 03, 380-480 03, output, 0.380-500 03, 0.380-480 03, F(Hz) input, 50/60, 50/60, output, 0.599, 0.599, I(A) input, output, 2.1 max, 2.1 max, 1.5, 1.5, Motor Overload Protection-class 10, SCCR: for rating and protection refer to Annex of getting started, → 75°C, IP 20, II (2) GD, CEO, 080, INERI3 16ATEX0042X, Input: CU AWG14, Input 5.3 lb.in, Input 0.6 N.m, EAC, 20, Output Ou AWG 14, Output 6.2 to 7.1 lb.n, Output 0.7 to 0.8 Nm, $, 224330, UL LISTED 170M, IND.CONT.EQ., E116875, Made in Indonesia, HL1706253051

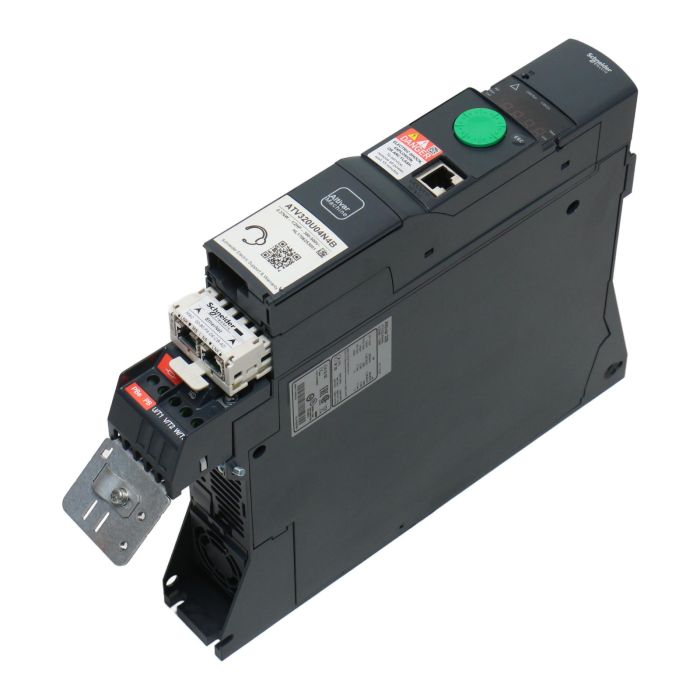

• Description: Altivar 320 Variable frequency drive - 380-500V - 0.37 kW - 0.5 HP - Book form - 3-phase
• Include: Altivar - Communicatiemodule - Ethernet TCP/IP, VW3A3616
• Product Info: Altivar Machine ATV320
• Product or component type: Speed controller
• Product specific application: Complex machines
• Variant: Standard version
• Size of the drive: Book
• Mounting mode: Cabinet mounting
• Communication port protocol: Serial Modbus, CANopen
• Option card: Communication Module, CANopen, Communication Module, EtherCAT, Communication Module, Profibus DP V1, Communication Module, Profinet, Communication Module, Ethernet Powerlink, Communication Module, Ethernet/IP, Communication Module, DeviceNet
• Our nominal supply voltage: 380...500 V - 15...10 %
• Nominal output current: 1.5 A
• Engine power kW: 0.37 kW for heavy duty
• EMC filter: Class C2 EMC filter integrated
• IP protection degree: IP20
• Number of digital inputs: 7
• Label-Info: Altivar 320, ATV320U04N4B, 0.37kW-1/2HP, V2.7 IE30, kW, HP, U(V) input, 380-500 03, 380-480 03, output, 0.380-500 03, 0.380-480 03, F(Hz) input, 50/60, 50/60, output, 0.599, 0.599, I(A) input, output, 2.1 max, 2.1 max, 1.5, 1.5, Motor Overload Protection-class 10, SCCR: for rating and protection refer to Annex of getting started, → 75°C, IP 20, II (2) GD, CEO, 080, INERI3 16ATEX0042X, Input: CU AWG14, Input 5.3 lb.in, Input 0.6 N.m, EAC, 20, Output Ou AWG 14, Output 6.2 to 7.1 lb.n, Output 0.7 to 0.8 Nm, $, 224330, UL LISTED 170M, IND.CONT.EQ., E116875, Made in Indonesia, HL1706253051

ATV320U04N4B + VW3A3616 Schneider Electric is a high-quality industrial product suitable for automation, packaging, conveyors, HVAC, and more. You can purchase this item at PLC2Day.

Schneider Electric lists more items of this brand currently in stock and for sale at PLC2Day.
