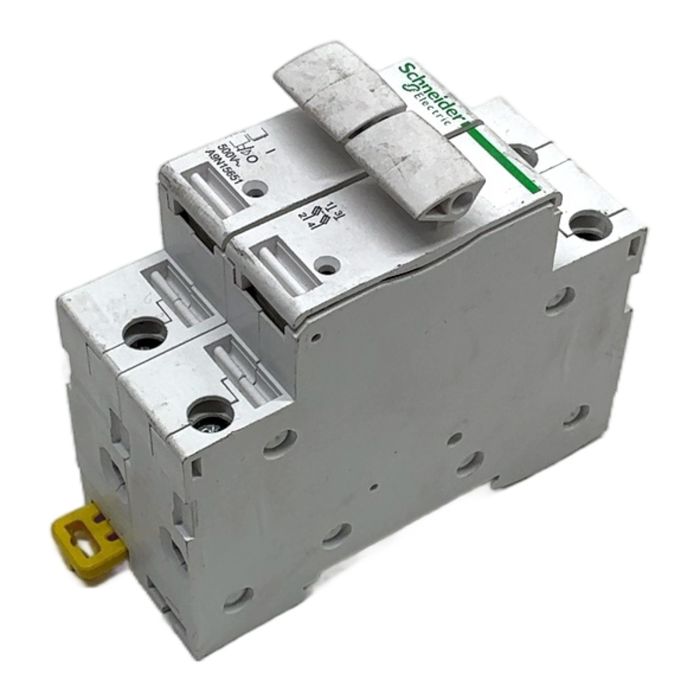

Schneider Electric Acti9 STI Switch Disconnector A9V11563

Description

The Schneider Electric A9V11563 is a high-quality switch disconnector from the Acti9 STI series. This 2-pole device is engineered for isolating electrical circuits with a nominal current of 25A and a voltage of 500V AC. It is an essential component for ensuring safety during maintenance operations in industrial, commercial, and residential applications. Its design allows for easy installation on a standard DIN rail.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Acti9 STI
• Model: A9V11563
• Type: Switch Disconnector / Isolator
• Number of Poles: 2P
• Rated Operational Current (Ie): 25 A
• Rated Operational Voltage (Ue): 500 V AC, 50/60 Hz
• Standard Compliance: IEC 947.3

Label Info

• Ie=25A 50/60Hz IP3XD
• aM: Iemax=16A
• 9G Iemax=25A 3W
• AC20B

Application

This device is primarily used for the safe isolation of circuits in distribution boards. It allows maintenance personnel to safely work on a de-energized circuit without risk of electric shock. It is not a circuit breaker and does not provide overcurrent protection.

Country of Origin

Made in Belgium.

CO2 Impact

By purchasing this reused component, you help avoid the emission of approximately 8.0 kg of CO2, which is equivalent to the savings from driving 40 kilometers in a standard car.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the difference between this STI switch disconnector and a standard iC60 circuit breaker?

Answer
While they look similar, the STI A9V11563 is a switch disconnector (isolator) designed for safely de-energizing a circuit for maintenance. It does not provide overcurrent or short-circuit protection like an iC60 circuit breaker. It must be used in conjunction with a protective device like a fuse or circuit breaker upstream.

Question?
Can this A9V11563 be used in a DC circuit?

Answer
No, this switch disconnector is specifically rated for 500V AC (Alternating Current) at 50/60Hz. Using it in a DC (Direct Current) circuit is not recommended and would violate its certification and safety ratings, as DC arcs are more difficult to extinguish.

Question?
What is the breaking capacity (Icn) of this device?

Answer
As a switch disconnector, its primary rating is not the breaking capacity (Icn) like a circuit breaker. Its relevant ratings are the rated operational current (Ie = 25A) and its ability to withstand short-circuits when protected by an upstream device. It's designed to make, carry, and break currents under normal circuit conditions.
