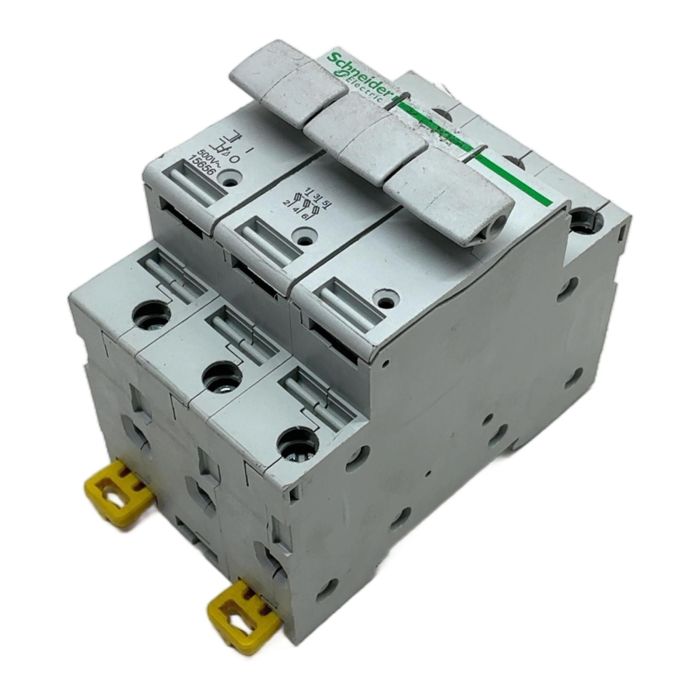

Schneider Electric Acti9 STI 15656 Fuse Disconnector

Description

The Schneider Electric 15656 is a robust 3-pole fuse disconnector from the trusted Acti9 STI series. It is designed to provide overcurrent protection and safe circuit isolation for industrial and commercial applications. This unit is mounted on a standard DIN rail and accommodates 10.3x38mm cylindrical fuses, offering a reliable solution for protecting three-phase systems.

Specifications

• Manufacturer: Schneider Electric
• Part Number: 15656
• Series: Acti9 STI
• Number of Poles: 3P (3-pole)
• Rated Current (Ie): 32A
• Rated Voltage (Ue): 500V AC
• Fuse Size: 10.3 x 38 mm
• Compatible Fuse Types: gG (up to 32A), aM (up to 25A)
• Mounting: DIN Rail
• Standard: IEC 60947-3

Label Info

• Brand: Schneider Electric
• Model: STI 10.3x38
• Part Nr.: 15656
• EAN: 3303430156567
• Voltage: 500V~
• Current: Ie=32A (gG), Iemax=25A (aM)

Application

Ideal for use in distribution boards, machine control panels, and automation systems to protect motors, transformers, and other electrical loads from short circuits and overloads.

Country of Origin

Made in Belgium.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 8.0 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of fuses are compatible with the Schneider 15656?
This disconnector is designed for cylindrical industrial fuses of size 10.3 x 38 mm. It is compatible with both gG type fuses up to 32A and aM (motor protection) type fuses up to 25A.

Can this fuse disconnector be used in a 3-phase system?
Yes, as a 3-pole (3P) device, it is specifically designed for use in three-phase electrical systems to provide simultaneous disconnection and protection for all three phases.

What is the breaking capacity of this device?
The breaking capacity is determined by the installed fuse, not the holder itself. The holder is rated according to IEC 60947-3 for isolation purposes. You must select a 10.3x38mm fuse with an appropriate breaking capacity (e.g., 20 kA, 100 kA) for your specific application's short-circuit current level.
