Schneider Electric Acti9 Miniature Circuit Breaker

Description

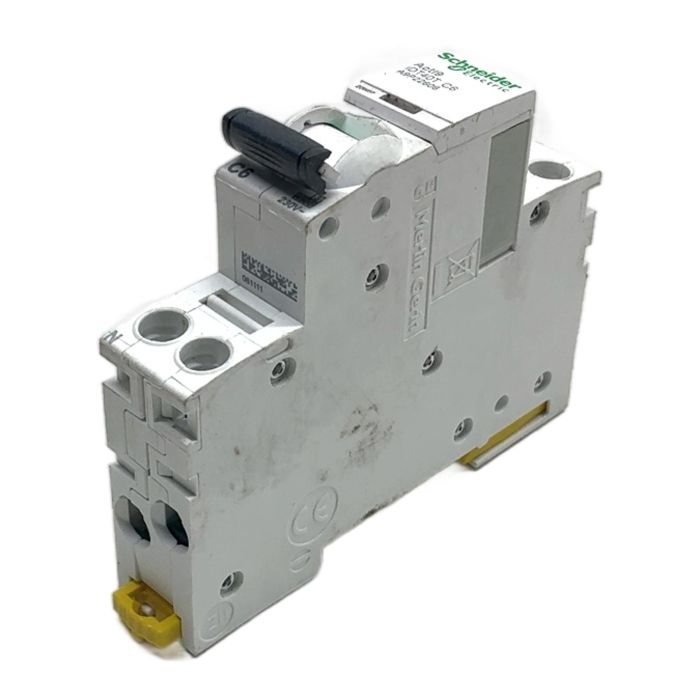

The Schneider Electric A9P22606 is a miniature circuit breaker from the Acti9 iDT40T range. It is designed for final circuit protection in buildings and industrial facilities. This 1P+N breaker offers a 6A rated current with a C tripping curve, providing reliable protection against overloads and short circuits. Its compact design allows for easy installation on a standard DIN rail.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Acti9
• Model: iDT40T C6
• Part Number: A9P22606
• Poles: 1 Pole + Neutral (1P+N)
• Rated Current: 6 A
• Tripping Curve: C
• Rated Voltage: 230V AC 50/60Hz
• Breaking Capacity (IEC 60898-1): 4500 A
• Breaking Capacity (IEC 60947-2): 6 kA
• Mounting: DIN Rail

Label Info

• Schneider Electric Acti9 iDT40T C6
• A9P22606
• Ue=230V, Icn=4500A (IEC 60898-1)
• Ue=230V, Icu=6kA (IEC 60947-2)

Application

This MCB is suitable for protecting lighting circuits, socket outlets, and other loads in residential, commercial, and light industrial environments where moderate inrush currents are expected.

Country of Origin

This product is made in France.

CO2 Impact

Opting for a refurbished version of this component helps avoid the emission of 5.0 kg of CO2, which is comparable to the emissions from driving a car for 25 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

IEC 60898-1 is a standard for circuit breakers for overcurrent protection for household and similar installations. IEC 60947-2 is a more demanding standard for industrial applications, typically requiring a higher breaking capacity (Icu). This breaker is dual-rated, making it versatile for both environments.

No, this model is specifically designed and rated for AC (Alternating Current) systems at 50/60Hz, as indicated on the label. Using it in a DC circuit is not recommended and would be unsafe.

The "C" refers to the tripping curve. A C-curve breaker is designed to trip at 5 to 10 times its rated current (6A in this case). It is a general-purpose curve suitable for protecting circuits with moderate inrush currents, such as lighting, socket outlets, and small motors.
