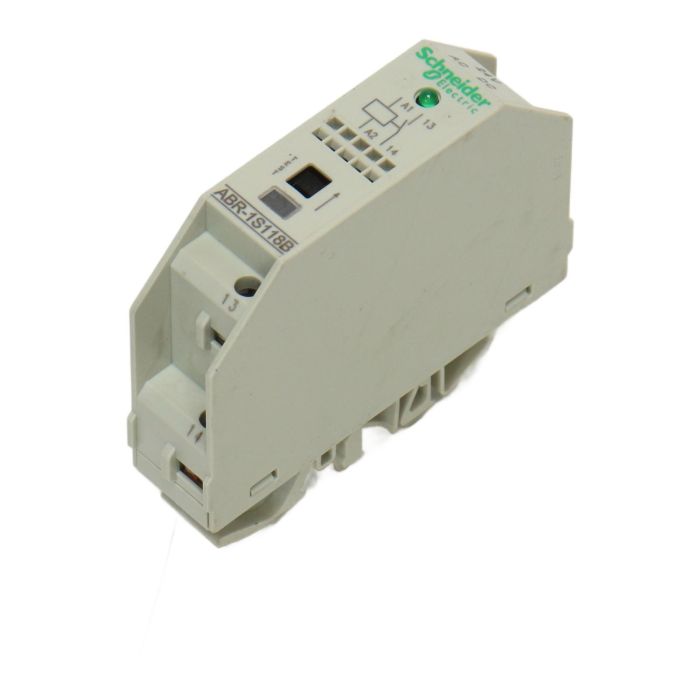

ABR1S118B: Electromechanical Output Interface Module - 24V AC/DC - 1 NO

Product Description

Electromechanical output interface module with 1 normally open contact. Designed for electrical power transmission applications, this module operates on a control circuit voltage of 24V AC/DC.

Product Specifications

Width Pitch Dimension: 17.5 mm
Maximum [In] Rated Current: 62 mA DC, 55 mA AC
Reverse Polarity Protection: Yes
Short-Circuit Protection: 16 A external fuse gF, 16 A external fuse gG
[Ith] Conventional Free Air Thermal Current: 12 A
Control Circuit Voltage Limits: 30 V energization threshold: 16.5 V
Maximum Switching Voltage: 125 V DC
Housing Colour: Grey
Local Signalling: Green mechanical indicator for position of contacts and 1 green LED control signal state

Product Label Info

Model Code / Product Markings: ABR1S118B

SP, UL, LISTED 170M, IND.CONT.EQ., 8.300 Pilot Duty, ס, Telemecanique, ] C E, Made in France

EAN (GTIN-13): 3389110569674

Application

Ideal for use in industrial control systems requiring reliable output interface modules.

Country of Origin

This product is manufactured in France.

Method of Application

Ensure proper installation as per manufacturer guidelines for seamless integration into your control system.

Safety Instructions

Handle with care to avoid damage to the module. Follow recommended voltage ranges and precautions during installation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the ABR1S118B used for?

This part is typically used in industrial control systems, such as manufacturing lines, to provide reliable output control.

What are the key advantages of ABR1S118B?

The ABR1S118B offers a compact design, reliable performance, and ease of integration into existing control systems.

Is ABR1S118B compatible with my system?

If you're using Schneider Electric control systems, especially in industrial settings, then the ABR1S118B will likely be compatible. Contact us to verify.

Alternatives to ABR1S118B

For similar functionality, consider exploring other output interface modules from Schneider Electric or compatible brands.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY supports surplus stock recovery initiatives. Contact us with details of your surplus inventory for further assistance.
