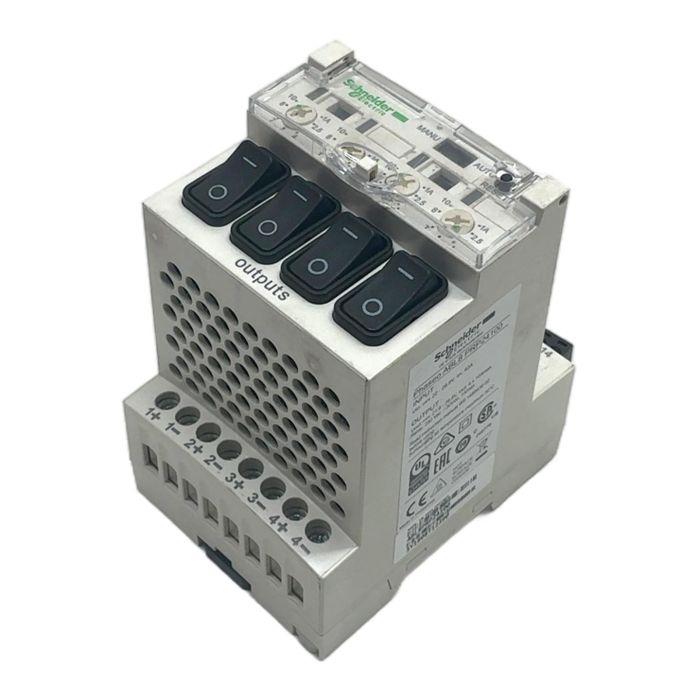

Schneider Electric ABL8PRP24100 Phaseo Protective Module

Description

The Schneider Electric ABL8PRP24100 is a 4-channel selective protection module from the Phaseo range, designed to safeguard 24V DC control circuits. It effectively prevents total system shutdowns caused by overloads or short circuits by isolating the fault to a single channel. Each output is individually adjustable up to 10A, providing tailored protection for various automation components. This DIN rail mountable module enhances system reliability and simplifies troubleshooting in industrial environments.

Specifications

• Manufacturer: Schneider Electric
• Product Type: Protective Module
• Model: ABL8PRP24100
• Input Voltage: 24V DC (range 22 - 28.8V)
• Input Current: 40A maximum
• Number of Outputs: 4
• Output Current: 4 x 10A maximum (adjustable)
• Output Voltage: 21.6 - 28.8V DC
• Mounting: DIN Rail

Label Info

• Input: Uin: 22-28.8V, Iin: 40A
• Output: Uout: 21.6-28.8V, Iout: 4 x 10Amax
• Relay: 250 Vac / 30Vdc, 1Amax
• Serial Number: 5Y1808T12390

Application

This module is ideal for use in complex automation systems where multiple devices are powered by a single 24V DC power supply. It provides granular protection for PLCs, sensors, actuators, and other control devices, improving overall machine availability.

Country of Origin

Made in Philippines.

CO2 Impact

By purchasing this pre-owned ABL8PRP24100, you are saving approximately 16 kg of CO2 emissions compared to a new production. This is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is an obsolete model but is available from our stock. The direct modern replacement is the Schneider Electric ABL8PRP24100G. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ABL8PRP24100 is a selective protection module. It takes a single 24V DC input and provides four independently protected output channels to prevent overcurrents and short circuits from shutting down an entire system, isolating the fault to the specific affected channel.

Each of the four channels has a dedicated rotary switch (potentiometer) on the front panel. You can use a small screwdriver to adjust the trip current for each channel individually, from 2.5A to 10A.

Yes, Schneider Electric designates the ABL8PRP24100G as the direct successor. While it offers similar functionality, it's always recommended to check the datasheets for both models to confirm any minor differences in dimensions, wiring, or performance characteristics before installation.
