• Specifications:
  • Main: Modicon Rectified
  • Range of product: ABL8FEQ
  • Product or component type: Power supply
  • Power supply type: Rectified and filtered
  • Rated power in W: 48 W
  • Nominal input voltage: 230 V AC single phase, terminal(s): N-L1, 400 V AC phase to phase, terminal(s): L1-L2
  • Output voltage: 24 V DC
  • Power supply output current: 2 A
  • Anti-harmonic filter: Low frequency harmonic currents
  • Product certifications: cULus, KC, EAC, UL 508
• Complementary:
  • Network frequency limits: 47…63 Hz
  • Input voltage limits: 207...253 V, 360...440 V
  • Power Factor: 0.737 at 230 V, 0.863 at 400 V
  • Efficiency: 75%
  • Power dissipation in W: 12 W
  • Output coupling: Parallel, Series
  • Output protection type: Against overload and short-circuits, protection technology: internal fuse, 2 A, 5 x 20 mm, T curve, Against overvoltage, protection technology: 2 J peak limiter
  • Hold-up time: 14 ms
  • Status LED: 1 LED (green) output voltage, 1 LED (orange) input voltage
  • Residual ripple: <= 1200 MV
  • Connections - terminals: For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11, For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11, For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11
• Environment:
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Ambient air temperature for operation: -20…60 °C
  • Ambient air temperature for storage: -40…80 °C
  • Relative humidity: 0…95% without condensation or dripping water
  • Operating altitude: 3000 m
  • Vibration resistance: 0.05 mm (f= 47…57 Hz), 0.7 gn (f= 13.9…47 Hz), 1 gn (f= 57…150 Hz), 1 mm (f= 3…13.9 Hz) conforming to IEC 60068-1
  • Safety class: Class I conforming to VDE 0106-1
  • Dielectric strength: 2000 V between input and ground, 4600 V between input and output, 500 V between output and ground
  • Other environmental characteristic: EMC conforming to IEC 62041, Safety conforming to EN/IEC 61558-2-6, Safety conforming to UL 508, Safety conforming to UL 60950-1, EMC conforming to EN/IEC 61000-3-2

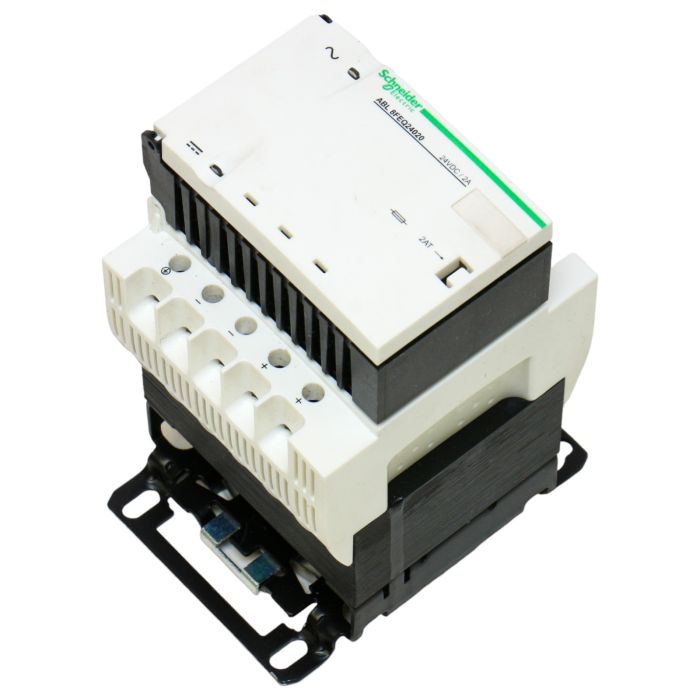

ABL8FEQ24020 940131 Schneider Electric is a versatile industrial power supply suitable for a wide range of applications. It can be used in various industries such as manufacturing, automation, and energy management. Purchase this reliable power supply at PLC2Day for all your industrial needs.
