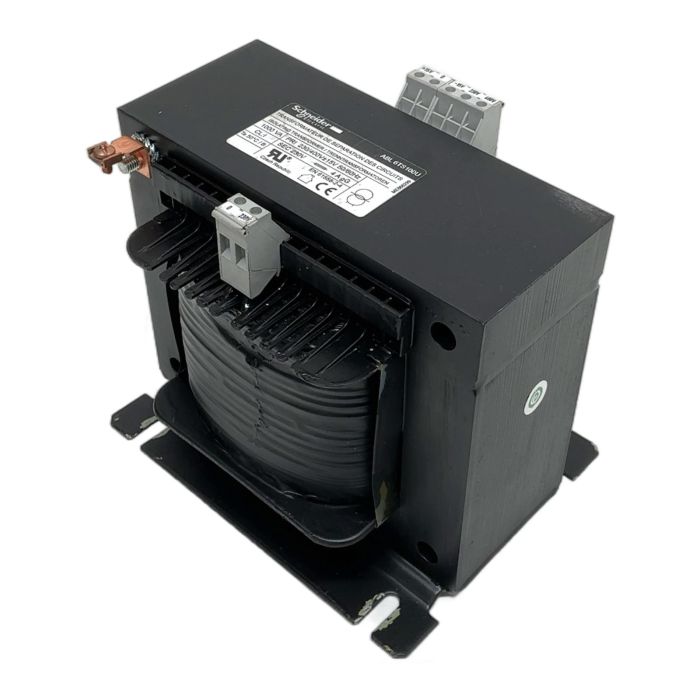

Schneider Electric ABL6TS100U Isolating Transformer

Description

The Schneider Electric ABL6TS100U is a high-performance isolating transformer from the Phaseo Universal range, designed for safety and reliability in industrial applications. With a power rating of 1000VA, it efficiently converts input voltages of 230V or 400V AC to a stable 230V AC output. It is an essential component for creating isolated circuits, protecting sensitive equipment, and ensuring operator safety in control panels and machinery. This transformer is built to meet the rigorous EN 61558-2-4 standard.

Specifications

• Manufacturer: Schneider Electric
• Model: ABL6TS100U
• Power Rating: 1000 VA
• Primary Input Voltage: 230V AC (+/- 15V) or 400V AC (+/- 15V)
• Secondary Output Voltage: 230V AC
• Frequency: 50/60 Hz
• Rated Current (Secondary): 4.4 A
• Operating Temperature: -20 to 50 deg C

Label Info

• PRI: 230/400V +/-15V 50/60Hz
• SEC: 230V 4.4A gG
• Standard: EN 61558-2-4

Application

Ideal for use in industrial automation, control panels, power distribution systems, and any application requiring galvanic isolation between the primary and secondary circuits. It is commonly used to power control circuits, PLCs, and other sensitive electronic devices safely.

Country of Origin

Made in Czech Republic.

CO2 Impact

By purchasing this reused transformer, you contribute to a circular economy and help avoid approximately 27 kg of CO2 emissions associated with the production of a new unit. This is a sustainable choice for your operations.

Availability

This product is a used item in excellent condition, tested and ready for immediate deployment. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Its primary application is to provide galvanic isolation for control circuits in industrial machinery. This protects downstream components from voltage spikes and ground loops, and enhances safety for personnel.

Yes, the primary winding is designed to operate with an input voltage tolerance of +/- 15V on both the 230V and 400V taps, making it suitable for environments with unstable power supplies.

The label specifies protection with a 4.4 A gG type fuse. It is crucial to use the recommended fuse type and rating to ensure proper protection of the transformer and the connected load.
