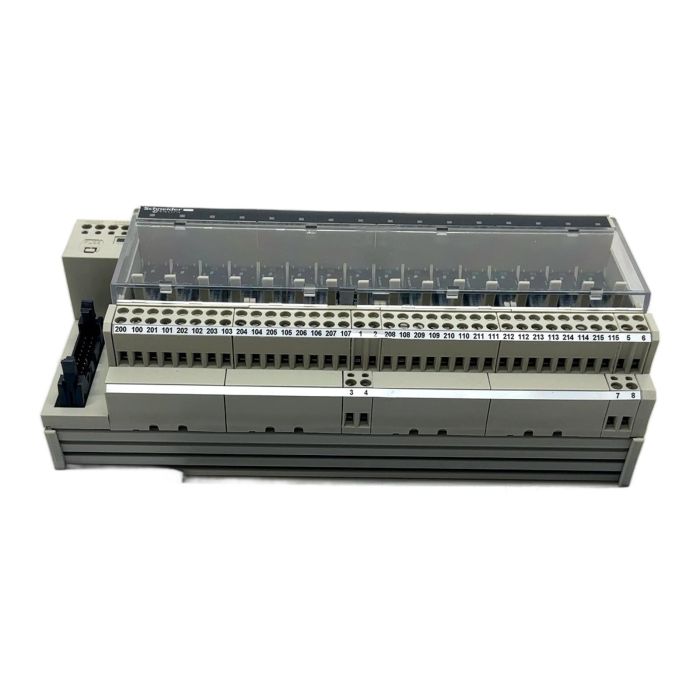

Schneider Electric Modicon ABE7 16-Channel Relay Output Module

Description

The ABE7R16T210 is a plug-in relay output sub-base from Schneider Electric's Modicon Telefast ABE7 series. It provides a straightforward and reliable interface between PLC digital outputs and field actuators. This module features 16 output channels, each with a 1 Normally Open (NO) contact, making it ideal for a wide range of control applications. The design simplifies wiring, reduces installation time, and provides dependable galvanic isolation.

Specifications

• Manufacturer: Schneider Electric
• Product Series: Modicon Telefast ABE7
• Model: ABE7R16T210
• Number of Channels: 16
• Contact Type: 1 NO (Normally Open) per channel
• Terminal Connections: Screw-type
• PLC Connection: HE-10 Connector
• Maximum Tightening Torque: 0.6 Nm

Label Info

• Brand: Schneider Electric
• Model: ABE7 R16T210
• Part Number: 064463
• Date Code: 3N-2014-W32

Application

This relay module is perfectly suited for industrial automation systems to control loads such as contactors, solenoid valves, and indicator lights. It is commonly used with Schneider Electric Modicon PLCs to ensure a robust and easily maintainable connection to field devices.

Country of Origin

Made in France.

CO2 Impact

By choosing to reuse this industrial part, you are saving 15.4 kg of CO2 emissions. This is equivalent to the emissions from driving an average car for 77 kilometers.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module is part of the Modicon Telefast ABE7 system and is designed for use with Schneider Electric's Modicon PLC series, such as the Modicon M340, Premium, and Quantum, using a compatible pre-wired cable with an HE-10 connector.

Yes, this sub-base comes with plug-in electromechanical relays. They are individually replaceable, allowing for easy maintenance without needing to replace the entire module. The specific relay part number is typically visible on the relay itself.

The maximum switching capacity depends on the specific plug-in relay used. However, for the standard relays supplied with this base, the typical maximum switching current is around 2 A, and the maximum switching voltage is 250 V AC or 30 V DC, subject to the load type. Always consult the official datasheet for precise electrical durability curves.
