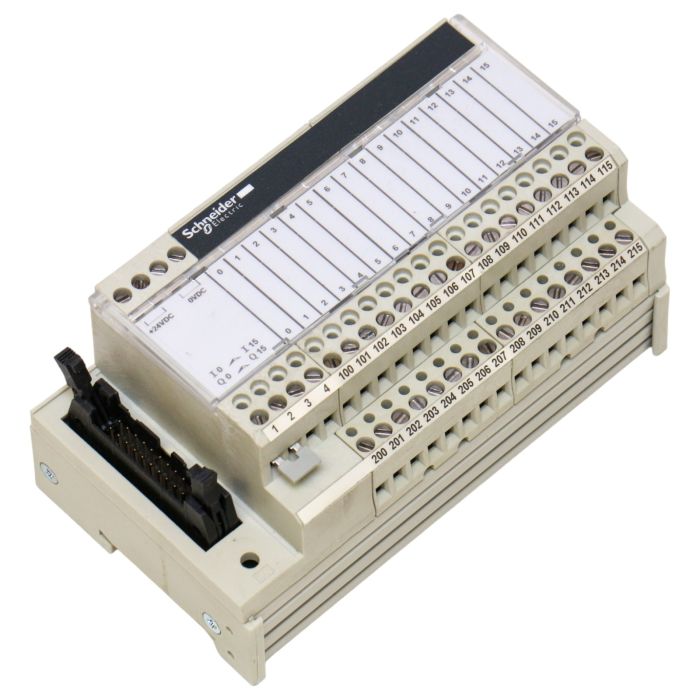

Passive connection sub-base ABE7 - 16 inputs or outputs: Specifications, Main, Range of Product, Modicon ABE7, Product or Component Type, Passive discrete I/O sub-base, Sub-base type, I/O sub-base, [Us] rated supply voltage, 19...30 V IEC 61131-2, Number of Channels, 16, Number of terminal per channel, 2, Connections - terminals, Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid, Complementary, supply voltage type, DC, Number of horizontal rows, 2, Status LED, 1 LED (Green) power ON, Polarity distribution, 0 V or 24 V, Short-circuit protection, 2 A internal fuse, 5 x 20 mm, fast blow PLC end), Connector Type, SUB-D 15, HE-10, SUB-D 9, Pin number, 20 pins, Fixing mode, By clips 35 mm symmetrical DIN rail), By screws solid plate with fixing kit), Maximum supply current, 1.8 A, Current per channel, 0.5 A, Maximum current per output common, 1.8 A, Voltage drop on power supply fuse, 0.3 V, [Ui] Rated Insulation Voltage, 2000 V, Installation category, II IEC 60664-1, Tightening torque, 5.31 lbf.in (0.6 N.m) flat Ø 3.5 mm, Width, 4.92 in (125 mm), Net Weight, 0.66 lb(US) (0.3 kg), Environment, Product Certifications, GL, DNV, CSA, UL, EAC, IP degree of protection, IP2X conforming to IEC 60529, Resistance to incandescent wire, 1382 °F (750 °C) IEC 60695-2-11, Shock resistance, 15 gn 11 ms IEC 60068-2-27, Vibration resistance, 2 gn 10…150 Hz)IEC 60068-2-6, Resistance to electrostatic discharge, 4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2, Resistance to radiated fields, 9.14 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3, Resistance to fast transients, 2 kV level 3 IEC 61000-4-4, Ambient air temperature for operation, 23…140 °F (-5…60 °C) IEC 61131-2, Ambient air temperature for storage, -40…176 °F (-40…80 °C) IEC 61131-2, Pollution degree, 2 IEC 60664-1,

• Specifications:
  • Main Range of Product: Modicon ABE7
  • Product or Component Type: Passive discrete I/O sub-base
  • Sub-base type: I/O sub-base
  • [Us] rated supply voltage: 19...30 V IEC 61131-2
  • Number of Channels: 16
  • Number of terminal per channel: 2
  • Connections - terminals:
    • Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end
    • Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid
    • Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end
    • Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end
    • Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid
  • Complementary supply voltage type: DC
  • Number of horizontal rows: 2
  • Status LED: 1 LED (Green) power ON
  • Polarity distribution: 0 V or 24 V
  • Short-circuit protection: 2 A internal fuse, 5 x 20 mm, fast blow PLC end
  • Connector Type: SUB-D 15, HE-10, SUB-D 9
  • Pin number: 20 pins
  • Fixing mode: By clips 35 mm symmetrical DIN rail, By screws solid plate with fixing kit
  • Maximum supply current: 1.8 A
  • Current per channel: 0.5 A
  • Maximum current per output common: 1.8 A
  • Voltage drop on power supply fuse: 0.3 V
  • [Ui] Rated Insulation Voltage: 2000 V
  • Installation category: II IEC 60664-1
  • Tightening torque: 5.31 lbf.in (0.6 N.m) flat Ø 3.5 mm
  • Width: 4.92 in (125 mm)
  • Net Weight: 0.66 lb(US) (0.3 kg)
• Environment:
  • Product Certifications: GL, DNV, CSA, UL, EAC
  • IP degree of protection: IP2X conforming to IEC 60529
  • Resistance to incandescent wire: 1382 °F (750 °C) IEC 60695-2-11
  • Shock resistance: 15 gn 11 ms IEC 60068-2-27
  • Vibration resistance: 2 gn 10…150 Hz)IEC 60068-2-6
  • Resistance to electrostatic discharge: 4 kV contact) level 3 IEC 61000-4-2, 8 kV air) level 3 IEC 61000-4-2
  • Resistance to radiated fields: 9.14 V/m (10 V/m) 26000000…1000000000 Hz)IEC 61000-4-3 level 3
  • Resistance to fast transients: 2 kV level 3 IEC 61000-4-4
  • Ambient air temperature for operation: 23…140 °F (-5…60 °C) IEC 61131-2
  • Ambient air temperature for storage: -40…176 °F (-40…80 °C) IEC 61131-2
  • Pollution degree: 2 IEC 60664-1

ABE7H16R20 Schneider Electric is a versatile industrial automation product that can be used in a variety of applications. It is commonly used in manufacturing, energy management, and building automation systems. This high-quality item can be purchased at PLC2Day for all your automation needs.
