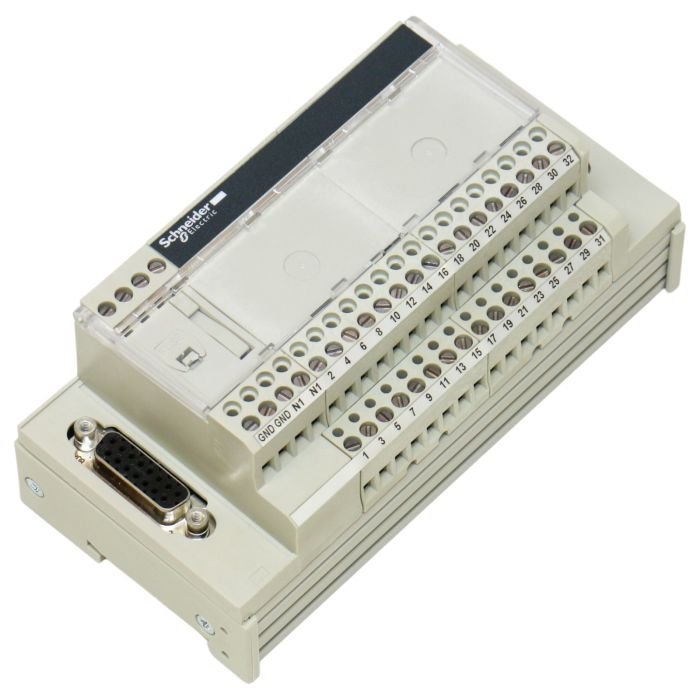

• Advantys Telefast ABE7 - Connection module
• For counter and analogue outputs
• Specifications:
• Head: Modicon ABE7
• Range of product: Advantys Telefast
• Product or component type: Connection base for counter and analog channels
• Number of channels: 2, 8, 1
• Connections - terminals: Screw terminals
• 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
• 1 x 0.14...1 x 2.5 mm² (AWG 26... AWG 12) fixed
• 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end
• 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end
• 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) fixed
• Function module: Counting and analog
• Compatible with: TSX Micro, Premium
• Product compatibility: TSX Micro TSX3722, Premium TSXCAY21, Premium TSXCAY41, Premium TSXCTY2A, Premium TSXCTY4A, TSX Micro TSXCTZ1A, TSX Micro TSXCTZ2A
• Voltage control circuit: 24VDC
• Connection to PLC: SUB-D 15
• Mounting method: With clips (35 mm symmetrical DIN rail), With screws (solid plate with mounting kit)
• Ui rated insulation voltage: 2000 V terminals/mounting rails
• Installation category: II conforming to IEC 60664-1
• Tightening torque: 0.6 Nm with flat Ø 3.5 mm screwdriver
• Net weight: 0.3kg
• Environment:
• Product certifications: DNV, CSA, UL, GL, EAC
• IP degree of protection: IP20 conforming to IEC 60529
• Resistance to filament: 750 °C conforming to IEC 60695-2-11
• Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27
• Vibration resistance: 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
• Resistance to electrostatic discharge: 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2
• Resistance to radiated fields: 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3
• Resistance to rapid peak voltages: 2 kV level 3 conforming to IEC 61000-4-4
• Ambient air temperature for operation: 0…60 °C
• Ambient air temperature for storage: -40…80 °C conforming to IEC 61131-2
• Pollution degree: 2 conforming to IEC 60664-1

ABE7CPA01 054484 Schneider Electric is a versatile industrial component that is essential for various applications in the manufacturing and automation industry. This item can be purchased at PLC2Day and is commonly used in industrial automation, control systems, and machinery. Its reliable performance and compatibility make it a popular choice for professionals looking to enhance their industrial operations.
