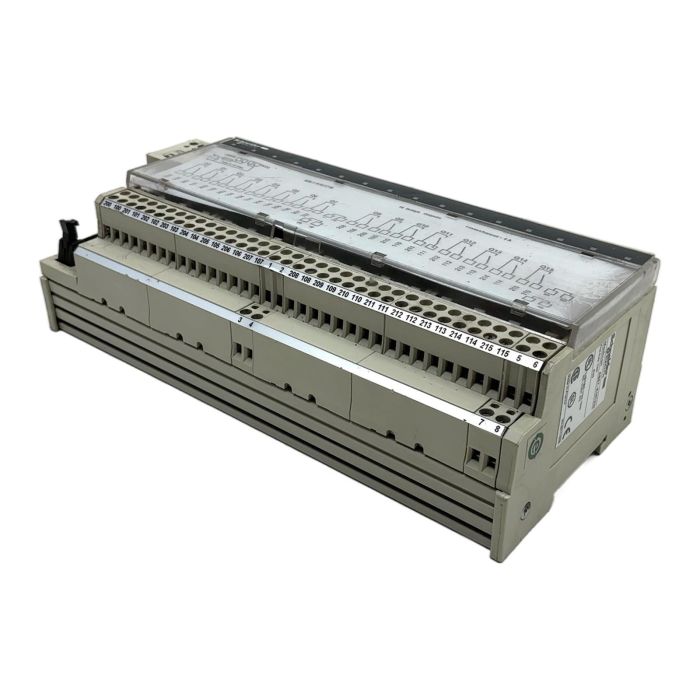

Schneider Electric Modicon ABE7-R16T210 PLC Sub-base

Description

The ABE7-R16T210 is a Telefast 2 connection sub-base from Schneider Electric's Modicon series. It is designed to simplify the connection of PLC I/O modules to field devices. This model provides 16 relay output channels with screw-clamp terminals, making it a robust solution for industrial control applications, particularly for legacy Modicon M340 and Quantum systems. The use of plug-in relays allows for easy maintenance and replacement.

Specifications

• Manufacturer: Schneider Electric
• Series: Modicon ABE7
• Model: ABE7-R16T210
• Product Type: Connection Sub-base for plug-in relays
• Number of Channels: 16
• Output Type: 1 NO contact per channel
• Control Circuit Voltage: 24V DC
• Connection to PLC: HE-10 connector
• Field Connection: Screw-clamp terminals
• Protection: Fuse for relay coil common

Label Info

• Modicon ABE7-R16T210
• Pilot Duty: C300 R150
• Made In France
• Date Code: 3N-2011-W35

Application

This sub-base is ideal for interfacing digital output signals from a PLC to higher-power loads like contactors, solenoids, and indicator lamps in industrial automation environments. Its pre-wired design significantly reduces installation time and potential for wiring errors.

Country of Origin

This product was made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 16 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to the emissions from driving a car for 80 kilometers.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.
