Schneider Electric Modicon ABE7 Relay Sub-Base

Description

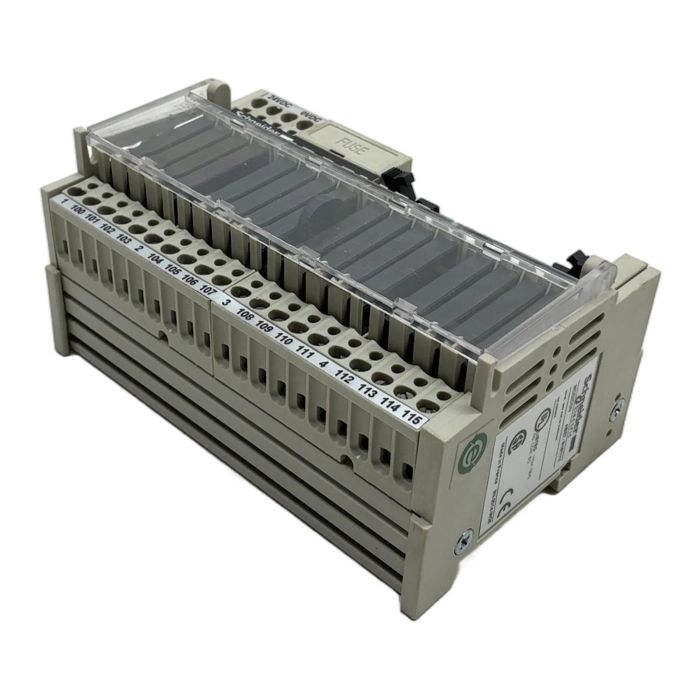

The Schneider Electric ABE7-R16T111 is a Telefast 2 connection sub-base for Modicon PLC systems. It is designed to provide a simplified and reliable interface between a PLC's digital output module and field actuators. This module features 16 pluggable relays, allowing for easy maintenance and robust switching of various loads. It's an ideal solution for reducing wiring time and errors in complex automation panels.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon ABE7
• Model: ABE7-R16T111
• Product Type: Pluggable relay sub-base
• Number of Channels: 16
• Control Circuit Voltage: 24V DC
• Output Voltage: Up to 230V AC/DC
• Max Current per Channel: 5A
• PLC Connection: HE-10 connector
• Field Connection: Screw type terminals

Label Info

• Brand: Schneider Electric
• Model: MODICON ABE7-R16T111
• Input: 24VDC
• Output: 230V MAX, 5A MAX/CHAN.
• Common: 12A MAX/COM.
• Certifications: UL Listed, CSA, CE

Application

This relay module is commonly used in industrial automation systems for controlling motors, contactors, solenoids, and indicator lights. It is particularly suited for legacy Modicon systems requiring a compact and efficient I/O wiring solution.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused component, you are helping to prevent the emission of approximately 18 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree over a full year.

Availability

This is a pre-owned, tested item in excellent working condition. Ideal for spare parts or replacing a faulty unit in an existing installation. Order now from PLC2Day for expert support and fast delivery.

FAQ

This sub-base uses a standard HE-10 (20-pin) connector for connection to the PLC's digital output card. A pre-wired cable is required for this connection.

Yes, the ABE7-R16T111 features pluggable relays. This allows for easy replacement of a faulty relay without needing to replace the entire sub-base, minimizing downtime.

Absolutely. Each relay output is designed to handle both resistive and inductive loads up to its specified rating (5A max). For highly inductive loads, it is recommended to use appropriate protection, such as a freewheeling diode or RC snubber, across the load to protect the relay contacts.
