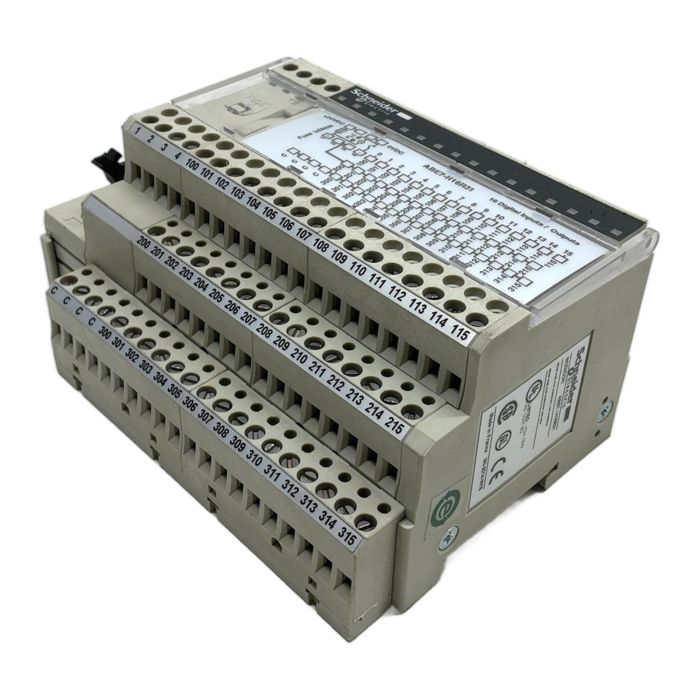

Schneider Electric ABE7-H16R31 Modicon Telefast 2 Relay Module

Description

The ABE7-H16R31 is a 16-channel electromechanical relay output connection base from Schneider Electric's Modicon ABE7 Telefast 2 range. It is engineered to simplify the connection between Modicon PLC I/O cards and field actuators. This module streamlines wiring, reduces potential errors, and saves valuable installation time in complex automation setups. Its robust design with per-channel fusing ensures reliable operation and easy maintenance.

Specifications

• Manufacturer: Schneider Electric
• Series: Modicon ABE7 Telefast 2
• Model: ABE7-H16R31
• Product Type: Relay Output Connection Base
• Number of Channels: 16
• Output Type: Electromechanical Relay (Separate)
• Rated Voltage: 24V DC
• Max Current per Channel: 1A
• Protection: Integrated 1A fuse per channel
• Connection to PLC: HE10 or SUB-D connector

Label Info

• MODICON ABE7-H16R31
• 30VDC MAX, 1A MAX/CHAN
• UL LISTED 170M, 79M2
• Made in France

Application

This module is ideal for applications requiring the switching of low-power DC loads such as solenoid valves, contactor coils, and indicator lamps in industrial control systems based on Schneider Electric Modicon M340, Premium, or Quantum PLCs.

Country of Origin

This product is proudly Made in France.

CO2 Impact

By purchasing this pre-owned module, you are contributing to a circular economy and avoiding approximately 16.0 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions from a car driving 80 kilometers.

Availability

This item is an obsolete component, but it is available from our stock for immediate dispatch. Essential for maintaining legacy systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

What PLCs is the ABE7-H16R31 compatible with?

This module is part of the Telefast 2 system, designed for use with Schneider Electric Modicon M340, Premium, and Quantum PLC I/O cards. It connects via a HE10 or Sub-D connector cable.

What is the maximum current rating per channel for this module?

The ABE7-H16R31 has a maximum current rating of 1 Ampere per channel. It also features a 1A fuse for each channel for protection.

Is this module still in production and can I get technical support for it?

The ABE7-H16R31 is an obsolete product and no longer manufactured by Schneider Electric. While official support is limited, documentation is still available and the module is widely understood in the industry. The modern equivalent is the ABE7R16S210.
