Schneider Electric ABE7-H16R21 Telefast Connection Module

Description

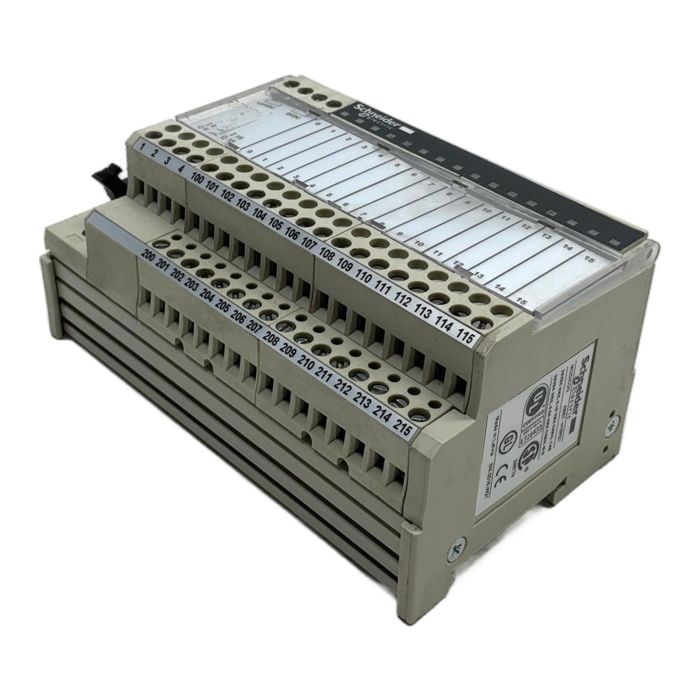

The Schneider Electric ABE7-H16R21 is a Telefast 2 connection sub-base for 16-channel relay output modules. It is part of the Modicon PLC accessory range and is designed to simplify and speed up the process of wiring I/O to PLCs like the Modicon M340 and Premium series. This module provides a clear and organized interface between the PLC and field devices, using screw terminals for field wiring and an HE-10 connector for the pre-wired cable connection to the PLC card.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon ABE7
• Model: ABE7-H16R21
• Product Type: Pluggable connection sub-base for relay outputs
• Number of Channels: 16
• Rated Supply Voltage: 19 to 30V DC
• Connector Type: HE-10
• Mounting: 35mm DIN rail or screw mount

Label Info

• Max Voltage: 30V DC
• Max Current per Channel: 0.5A
• Protection: Fuse per 8 channels

Application

This module is typically used in industrial automation panels to connect digital output signals from a PLC to actuators such as contactors, solenoid valves, and indicator lights. Its pre-wired nature minimizes wiring errors and commissioning time.

Country of Origin

Made in Latvia.

CO2 Impact

By purchasing this reused component, you are contributing to the circular economy and avoiding approximately 12 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This is an obsolete but readily available spare part. Condition is used but tested and fully functional. Order now from PLC2Day for expert support and fast delivery.

FAQ

What PLC series is the ABE7-H16R21 compatible with?

It is primarily designed for use with the Schneider Modicon M340 and Modicon Premium PLC series.

The maximum current is 0.5A per channel, with internal fusing and overall current limitations for the module to ensure safe operation.

A standard pre-formed Telefast 2 cable, such as those from the Schneider ABE7CPAxx series, is used to connect this sub-base to the corresponding PLC I/O card.
