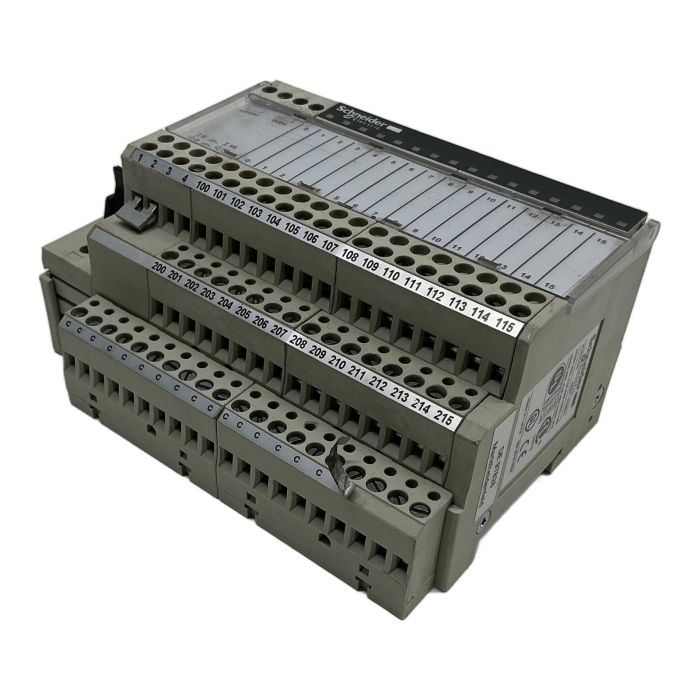

Schneider Electric ABE7-H16R21 Modicon Telefast Relay Interface

Description

The ABE7-H16R21 is a passive connection sub-base from Schneider Electric's Advantys Telefast ABE7 range. It provides a reliable and efficient way to connect field wiring to 16-channel digital I/O modules of Modicon M340 and Premium PLCs. This module features 16 integrated, normally open (1NO) relays, simplifying control circuits and reducing panel space and wiring time.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Advantys Telefast ABE7
• Model Number: ABE7-H16R21
• Number of Channels: 16
• Output Type: 1 NO electromechanical relay per channel
• Control Circuit Voltage: 24V DC
• Maximum Switching Voltage: 30V DC
• Maximum Current per Channel: 0.5A
• Maximum Current per Module: 1.6A
• Connections (Field Side): Screw-type terminals
• Connections (PLC Side): 20-pin HE10 connector

Label Info

• Brand: Schneider Electric
• Model: ABE7-H16R21
• Certifications: UL, CSA, CE

Application

This relay sub-base is ideal for industrial automation applications requiring the switching of low-voltage DC loads. It is commonly used in manufacturing, process control, and building automation systems to interface between the PLC controller and external devices like solenoids, indicators, and small contactors.

Country of Origin

This product is Made in Latvia.

CO2 Impact

Opting for a refurbished ABE7-H16R21 module saves approximately 16.0 kg of CO2 compared to producing a new one. This environmental saving is equivalent to the emissions from driving a car for 80 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This module is primarily designed for use with Schneider Electric's Modicon M340 and Modicon Premium PLC series. It connects to 16-channel discrete I/O cards via a HE10 connector cable.

No, the electromechanical relays on the ABE7-H16R21 are soldered directly onto the PCB and are not designed to be individually plugged in or replaced. The entire sub-base must be replaced if a relay fails.

The maximum current per channel is 0.5A at 30V DC. However, the total current for the entire module (sum of all channels) should not exceed 1.6A to avoid overloading the common power supply path.
