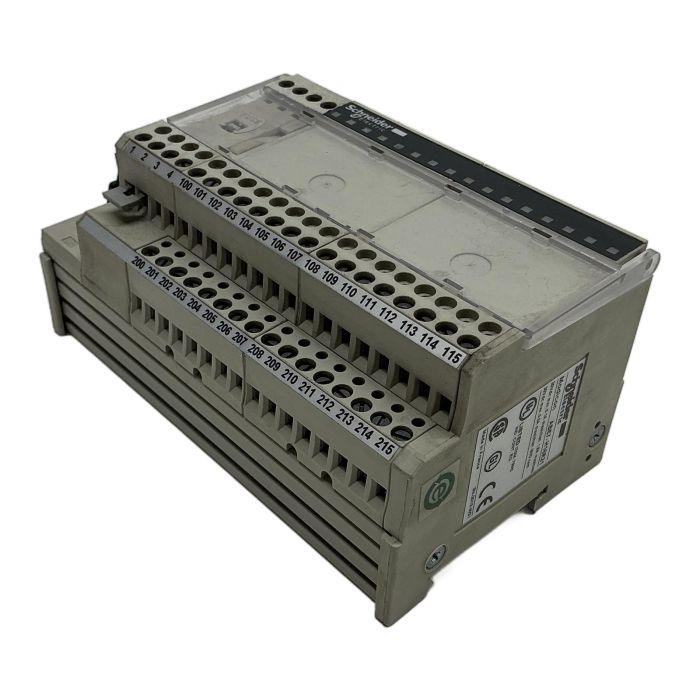

Schneider Electric ABE7-H16R21 Modicon Telefast 2 Sub-Base

Description

The ABE7-H16R21 is a 16-channel relay output sub-base from the Schneider Electric Modicon ABE7 Telefast 2 family. It is engineered to provide a simple and reliable interface between your Modicon PLC (such as M340, Premium, or Quantum) and field devices. This module facilitates rapid connection via a 20-way HE10 connector and clearly labelled screw terminals, minimizing wiring effort and commissioning time.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon ABE7
• Model: ABE7-H16R21
• Product Type: Plug-in sub-base for relay outputs
• Number of Channels: 16
• Control Circuit Voltage: 24V DC
• Output Voltage Limits: 19 to 30V DC
• Connection Type: Screw-type terminals, HE10 connector
• Protection: 1.6A fast blow fuse per channel

Label Info

• Brand: Schneider Electric
• Model: Modicon ABE7-H16R21
• Input Ratings: 30Vdc max, 0.1A max/chan, 1.6A max/com
• Date Code: 3N-2013-W21

Application

This sub-base is ideal for industrial automation applications requiring the switching of multiple DC loads. It is commonly used in manufacturing, process control, and building automation systems to connect PLC digital outputs to actuators, solenoids, contactors, and indicator lamps.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned ABE7-H16R21 module over a new one prevents the emission of approximately 12 kg of CO2. This saving is comparable to the carbon footprint of driving a car for 60 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of PLC connector is used with the ABE7-H16R21?

The ABE7-H16R21 uses a 20-way HE10 connector. It is designed for use with pre-formed Telefast cables (like ABE7CPAxx) to connect to Modicon M340, Premium, or Quantum PLC I/O cards.

No, the relays on the ABE7-H16R21 sub-base are soldered to the PCB and are not designed to be user-replaceable. If a relay fails, the entire module typically needs to be replaced.

The ABE7-H16R21 is equipped with a 1.6A fast-blow fuse for each channel. This provides overcurrent protection for the individual output circuits, protecting both the field device and the module itself from short circuits or overload conditions.
