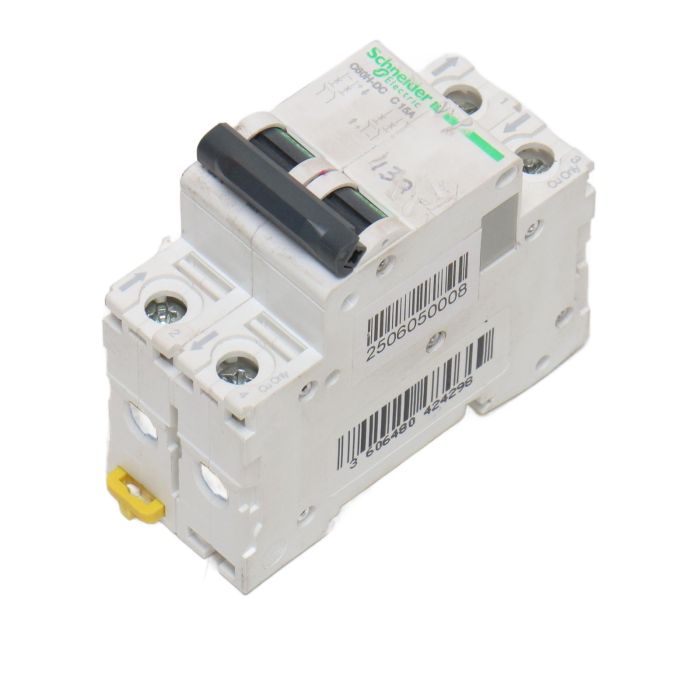

A9N61530 (C60H-DC) - Circuit breaker 2P - In=15A/Ue=500V DC - C-Characteristic

Product Description

Miniature power switch for Distribution with 2P poles, 15A rated current, and 500V DC network type. Thermal-magnetic trip unit technology with C curve code and 10kA breaking capacity.

Product Specifications

Head, range, Acti 9, product name, Acti 9 - C60H-DC, product or component type, Miniature power switch, device short name, C60H-DC, device application, Distribution, poles description, 2P, number of protected poles, 2, In rated current, 15 A at 25 °C, network type, DC, trip unit technology, Thermal-magnetic, curve code, C, breaking capacity, 10 kA Icu at 440 V DC conforming to EN 60947-2, 10 kA Icu at 440 V DC conforming to IEC 60947-2, 6 kA Icu at 500 V DC conforming to EN 60947-2, 6 kA Icu at 500 V DC conforming to IEC 60947-2, 20 kA Icu at 220 V DC conforming to GB 14048.2, 20 kA Icu at 220 V DC conforming to IEC 60947-2, 20 kA Icu at 250 V DC conforming to GB 14048.2, 20 kA Icu at 250 V DC conforming to IEC 60947-2, utilization category, A conforming to EN 60947-2, A conforming to IEC 60947-2, suitability for isolation, Yes, according to IEC 60947-2, Yes, according to EN 60947-2

IEC/EN 60947-2, Rating(A), mm², Torque m.N, 0,5-25, 1-25, 2,5, 30-63, 1-35, 3,5, CE, Made in CHINA, DRSAZ, Tref = 25°C >, Ue= 500V= Icu= 6kA, Ue=440V== Icu= 10kA (C): li = 8.5In, Ue= 220V-, Icu=20kA Ics= 75%lcu, Uimp =6kV Deg 3 Cat A, L+, A DANGER, +, Correct voltage, polarity required

Product Label Info

Model Code / Product Markings: A9N61530

IEC/EN 60947-2, Rating(A), mm², Torque m.N, 0,5-25, 1-25, 2,5, 30-63, 1-35, 3,5, CE, Made in CHINA, DRSAZ, Tref = 25°C >, Ue= 500V= Icu= 6kA, Ue=440V== Icu= 10kA (C): li = 8.5In, Ue= 220V-, Icu=20kA Ics= 75%lcu, Uimp =6kV Deg 3 Cat A, L+, A DANGER, +, Correct voltage, polarity required

EAN (GTIN-13): 3606480424298

Application

Distribution

Country of Origin

This product is manufactured in CHINA.

Method of Application

Yes, according to IEC 60947-2, Yes, according to EN 60947-2

Safety Instructions

Correct voltage, polarity required

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the A9N61530 (C60H-DC) used for?

This part is typically used in Distribution environment, such as power distribution systems. It handles circuit protection and ensures safe operation.

What are the key advantages of A9N61530 (C60H-DC)?

It offers reliable circuit protection with a high breaking capacity and C curve code suitable for DC applications.

Is A9N61530 (C60H-DC) compatible with my system?

If you're using Schneider Electric control systems, especially in DC distribution setups, this model will be compatible. Contact us to verify.

Alternatives to A9N61530 (C60H-DC)

If you're looking for a similar miniature power switch, consider other Schneider Electric models in the Acti 9 range. These offer comparable performance and reliability.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock and offers tailored solutions for surplus recovery and resale. Contact us with details of your surplus items for more information.
