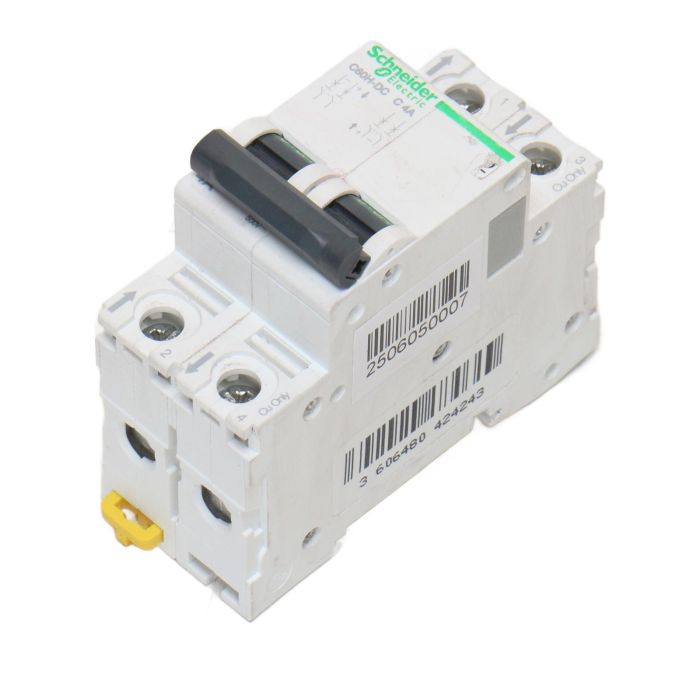

A9N61524 (C60H-DC) - Circuit breaker 2P - In=4A/Ue=500V DC - C-characteristic

Product Description

Miniature power switch designed for distribution applications with 2 protected poles, featuring a 4A current rating at 25°C, DC network compatibility, and a C-curve code for efficient operation.

Product Specifications

Brand: Schneider Electric

Product Type: Miniature Power Switch

Poles: 2

Rated Current: 4A at 25°C

Network Type: DC

Trip Unit Technology: Thermal-magnetic

Curve Code: C

Breaking Capacity: 10 kA Icu at 440V DC, 6 kA Icu at 500V DC, 20 kA Icu at 220V DC, 20 kA Icu at 250V DC

Utilization Category: A

Suitability for Isolation: Yes

Product Label Info

Model Code / Product Markings: A9N61524

IEC/EN 60947-2

Rating(A) mm², Torque m.N: 0.5-25, 1-25, 2.5, 30-63, 1-35, 3.5

CE, Made in CHINA

Tref = 25°C, Ue= 500V= Icu= 6kA, Ue=440V= Icu= 10kA (C): li = 8.5ln, Ue= 220V-, Icu=20kA Ics= 75%lcu, Uimp =6kV Deg 3 Cat A, A DANGER, +1+1, Correct voltage, polarity required, See catalog

Application

Suitable for distribution systems and equipment requiring reliable circuit protection in DC networks.

Country of Origin

This product is manufactured in CHINA.

Method of Application

Follow installation guidelines provided by Schneider Electric for seamless integration into your distribution setup.

Safety Instructions

Ensure correct voltage and polarity alignment during installation. Refer to the product catalog for detailed safety information.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the A9N61524 (C60H-DC) used for?

This part is typically used in distribution environments, providing circuit protection in DC networks. It ensures reliable operation and safety in power systems.

What are the key advantages of A9N61524 (C60H-DC)?

The miniature power switch offers efficient protection, high breaking capacities, and precise thermal-magnetic trip mechanisms for optimal performance.

Is A9N61524 (C60H-DC) compatible with my system?

If you're using Schneider Electric control systems, especially in DC applications, this model is likely compatible. Contact us for specific compatibility details.

Alternatives to A9N61524 (C60H-DC)

For similar functionality, consider exploring other Schneider Electric miniature power switches or circuit breakers tailored to your specific requirements.
