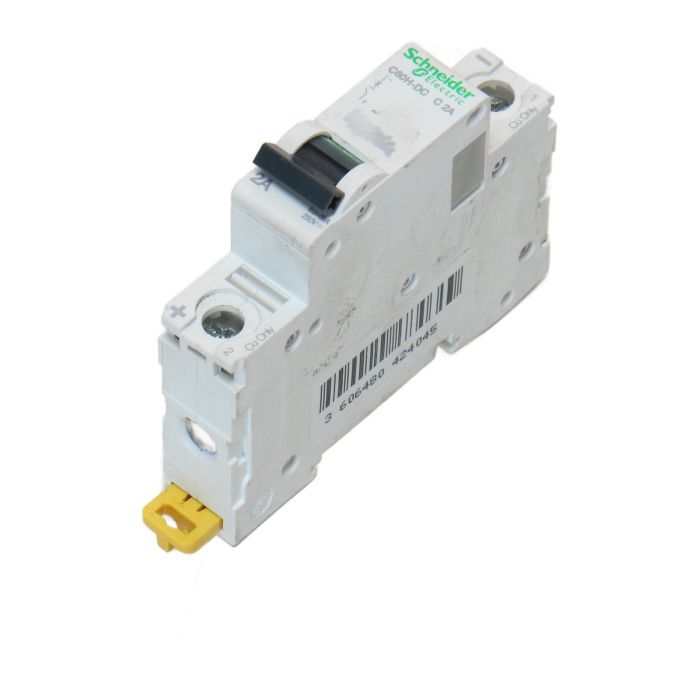

Schneider Electric A9N61502 Miniature Circuit Breaker

Product Description

The Schneider Electric C60H-DC Miniature Circuit Breaker is designed for distribution applications with a 1 Pole configuration and a 2A current rating. It features a C Curve and is suitable for DC networks.

Product Specifications

Main Range: Acti9
Product Name: Acti9 C60H-DC
Product Type: Miniature Circuit Breaker
Poles: 1P
Rated Current: 2A at 25°C
Network Type: DC
Trip Unit Technology: Thermal-magnetic
Curve Code: C
Breaking Capacity: 10kA Icu at 220V DC, 6kA Icu at 250V DC, 20kA Icu at 110V DC
Utilisation Category: Category A
Suitability for Isolation: Yes

Product Label Info

Model Code / Product Markings: A9N61502
IEC/EN 60947-2, Pating A, 05-25, 30-43, 1-3, CE, Made in CHINA, Tref = 25°C, U-250V-, lcu- 6kA, Ue=220V- lcu= 10kA (C): = 8.5in, Ue=110V- lcu=20kA Ics= 75%lcu, Uimp-6kV Deg 3 Cat A, A DANGER, Comet volage, polarity regard

EAN (GTIN-13): 3606480424045

Application

This miniature circuit breaker is typically used in distribution systems for DC networks.

Country of Origin

This product is manufactured in CHINA.

Method of Application

Follow installation guidelines provided by Schneider Electric for optimal performance.

Safety Instructions

Handle with care and follow proper grounding procedures for DC applications.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Schneider Electric A9N61502 Miniature Circuit Breaker used for?

This part is typically used in distribution systems for DC networks. It ensures circuit protection and reliable operation.

What are the key advantages of Schneider Electric A9N61502 Miniature Circuit Breaker?

It offers high breaking capacity, thermal-magnetic trip technology, and compact design for efficient distribution.

Is A9N61502 compatible with my system?

If you have a DC network requiring 2A protection, the C60H-DC model will be compatible. Verify with our team for specific integration needs.

Alternatives to A9N61502

For similar applications, consider other C60H series models from Schneider Electric or compatible offerings from leading manufacturers.
