Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc: Specifications, Main, range of product, Acti9, Product or component type, OC contact, Device short name, OF, Signal contacts composition, 1 C/O, [In] rated current, AC-12 3 A at 380...415 V, AC 50/60 Hz, AC-12 6 A at 220...240 V, AC 50/60 Hz, DC-12 1 A at 130 V, DC, DC-12 1.5 A at 60 V, DC, DC-12 2 A at 48 V, DC, DC-12 6 A at 24 V, DC, [Uc] control circuit voltage, 24...415 V AC 50/60 Hz, 24...130 V DC, 9 mm pitches, 1, Complementary, Mounting mode, Fixed, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top: YES, height, 85.3 mm, Width, 9 mm, Depth, 73.5 mm, Net weight, 30 g, Colour, White, Connections - terminals, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible, Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule, Wire stripping length, 9 mm, Tightening torque, 1 N.m, Environment, Standards, EN/IEC 60947-5-1, product certifications, ASEFA, KEMA, LCIE, ASTA, IP degree of protection, IP20 conforming to EN/IEC 60947-5-1, Pollution degree, 3 conforming to EN/IEC 60947-5-1, Tropicalisation, 2 conforming to EN/IEC 60947-5-1, ambient air temperature for operation, -25…50 °C, Ambient air temperature for storage, -40…85 °C, Content: 9 PCS.

• Main: Acti9 - Auxiliary contact OC plus 1 SD and OF ac dc
• Range of product: Acti9
• Product or component type: OC contact
• Device short name: OF
• Signal contacts composition: 1 C/O
• [In] rated current:
  • AC-12 3 A at 380...415 V, AC 50/60 Hz
  • AC-12 6 A at 220...240 V, AC 50/60 Hz
  • DC-12 1 A at 130 V, DC
  • DC-12 1.5 A at 60 V, DC
  • DC-12 2 A at 48 V, DC
  • DC-12 6 A at 24 V, DC
• [Uc] control circuit voltage: 24...415 V AC 50/60 Hz, 24...130 V DC
• 9 mm pitches: 1
• Complementary:
  • Mounting mode: Fixed
  • Mounting support: DIN rail
  • Comb busbar and distribution block compatibility: Top: YES
  • Height: 85.3 mm
  • Width: 9 mm
  • Depth: 73.5 mm
  • Net weight: 30 g
  • Colour: White
• Connections - terminals:
  • Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible
  • Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid
  • Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
• Wire stripping length: 9 mm
• Tightening torque: 1 N.m
• Environment:
  • Standards: EN/IEC 60947-5-1
  • Product certifications: ASEFA, KEMA, LCIE, ASTA
  • IP degree of protection: IP20 conforming to EN/IEC 60947-5-1
  • Pollution degree: 3 conforming to EN/IEC 60947-5-1
  • Tropicalisation: 2 conforming to EN/IEC 60947-5-1
  • Ambient air temperature for operation: -25…50 °C
  • Ambient air temperature for storage: -40…85 °C
• Content: 9 PCS

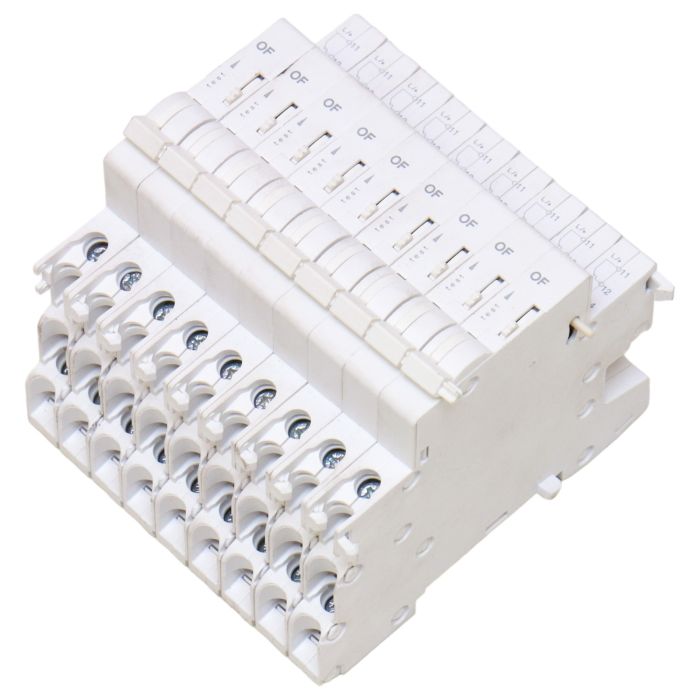

A9N26924 Schneider Electric is a reliable and high-quality industrial electrical component that can be used in a variety of applications. It is perfect for industrial automation, control systems, and power distribution. You can find this item at PLC2Day for all your industrial needs.
