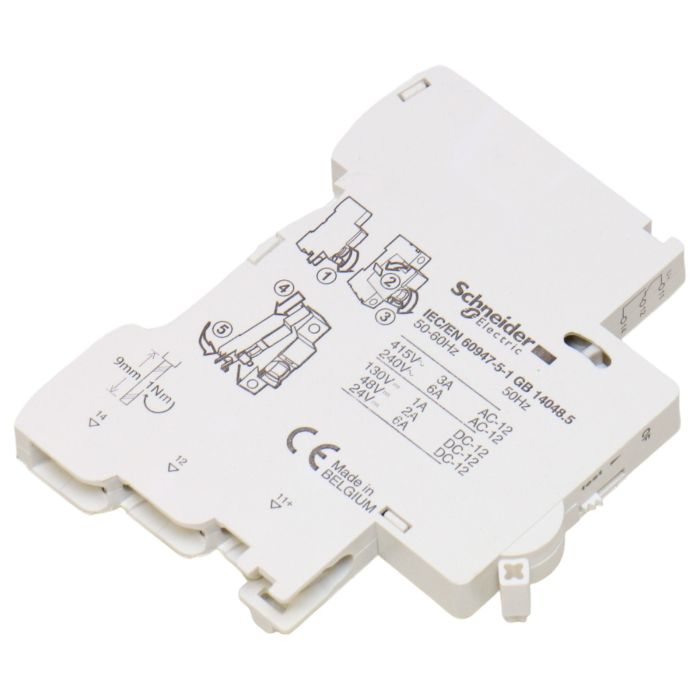

Acti 9 - Auxiliary contact OC plus 1 SD and OF ac dc : Specifications, Main, range of product, Acti9, Product or component type, OC contact, Device short name, OF, Signal contacts composition, 1 C/O, [In] rated current, AC-12 3 A at 380...415 V, AC 50/60 Hz, AC-12 6 A at 220...240 V, AC 50/60 Hz, DC-12 1 A at 130 V, DC, DC-12 1.5 A at 60 V, DC, DC-12 2 A at 48 V, DC, DC-12 6 A at 24 V, DC, [Uc] control circuit voltage, 24...415 V AC 50/60 Hz, 24...130 V DC, 9 mm pitches, 1, Complementary, Mounting mode, Fixed, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top: YES, height, 85.3 mm, Width, 9 mm, Depth, 73.5 mm, Net weight, 30 g, Colour, White, Connections - terminals, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible, Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule, Wire stripping length, 9 mm, Tightening torque, 1 N.m, Environment, Standards, EN/IEC 60947-5-1, product certifications, ASEFA, KEMA, LCIE, ASTA, IP degree of protection, IP20 conforming to EN/IEC 60947-5-1, Pollution degree, 3 conforming to EN/IEC 60947-5-1, Tropicalisation, 2 conforming to EN/IEC 60947-5-1, ambient air temperature for operation, -25…50 °C, Ambient air temperature for storage, -40…85 °C.

• Specifications:
• Main range of product: Acti9
• Product or component type: OC contact
• Device short name: OF
• Signal contacts composition: 1 C/O
• [In] rated current:
  • AC-12 3 A at 380...415 V, AC 50/60 Hz
  • AC-12 6 A at 220...240 V, AC 50/60 Hz
  • DC-12 1 A at 130 V, DC
  • DC-12 1.5 A at 60 V, DC
  • DC-12 2 A at 48 V, DC
  • DC-12 6 A at 24 V, DC
• [Uc] control circuit voltage: 24...415 V AC 50/60 Hz, 24...130 V DC
• 9 mm pitches: 1
• Complementary:
• Mounting mode: Fixed
• Mounting support: DIN rail
• Comb busbar and distribution block compatibility: Top: YES
• Height: 85.3 mm
• Width: 9 mm
• Depth: 73.5 mm
• Net weight: 30 g
• Colour: White
• Connections - terminals:
  • Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible
  • Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid
  • Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule
• Wire stripping length: 9 mm
• Tightening torque: 1 N.m
• Environment:
• Standards: EN/IEC 60947-5-1
• Product certifications: ASEFA, KEMA, LCIE, ASTA
• IP degree of protection: IP20 conforming to EN/IEC 60947-5-1
• Pollution degree: 3 conforming to EN/IEC 60947-5-1
• Tropicalisation: 2 conforming to EN/IEC 60947-5-1
• Ambient air temperature for operation: -25…50 °C
• Ambient air temperature for storage: -40…85 °C

Schneider Electric A9N26924 038292 is a high-quality item designed for industrial applications. This product is essential for efficient and reliable operations in various industries. You can purchase this item at PLC2Day and enjoy its superior performance and durability.
