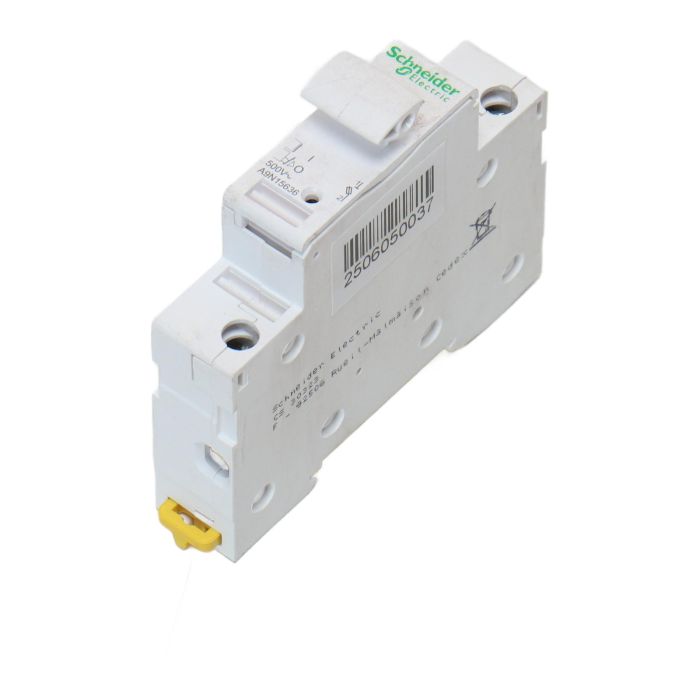

Acti9 STI - drawer fuse disconnector - 1P - 25A - for 10.3x38mm fuse

Product Description

A9N15636: Acti9 STI - drawer fuse disconnector - 1P - 25A - for 10.3x38mm fuse

Product Specifications

Main Range: Acti9
Product name: Acti9 STI
Type of product or equipment: Fuse disconnector
Device name: STI
Description of the poles: 1P
Complementary: [In] rated current: 2 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A
Fuse type: AM, GG
Fuse size: 10.3 x 38 mm
[Ue] assigned operating voltage: 500 V AC
[Ui] assigned insulation voltage: 500 V AC 50/60 Hz
Installation mode: Snap-on
Mounting bracket: DIN rail, 9mm pitch

Product Label Info

Model Code / Product Markings: A9N15636

AC20B, 50Hz IP20, IEC 947, 9G: Iemax=258 3W, aM: Iemax=168, Made in BELGIUM

EAN (GTIN-13): 3606480619519

Application

Typically used in industrial environments for power distribution and protection.

Country of Origin

This product is manufactured in BELGIUM.

Method of Application

Designed for easy snap-on installation on DIN rails with 9mm pitch.

Safety Instructions

Ensure proper grounding and follow standard electrical safety procedures during installation and maintenance.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Acti9 STI used for?

This part is typically used in industrial power distribution systems, such as control panels and switchgear. It provides reliable fuse protection for electrical circuits.

What are the key advantages of Acti9 STI?

The Acti9 STI offers easy installation, reliable performance, and compatibility with a range of fuse sizes. It enhances electrical safety and protects equipment from overcurrent.

Is A9N15636 compatible with my system?

If your system uses standard DIN rail mounting and requires 25A fuse protection, then the Acti9 STI is likely compatible. Consult with our team for specific compatibility concerns.

Alternatives to A9N15636

If you're considering alternatives, explore other Acti9 series products from Schneider Electric that offer similar functionality and performance. Our team can help you find the right fit for your application.

Can I sell my surplus stock to PLC2DAY?

Yes, we accept surplus stock and offer tailored solutions for surplus recovery. Contact us with details of your surplus inventory for a consultation on resale options.
