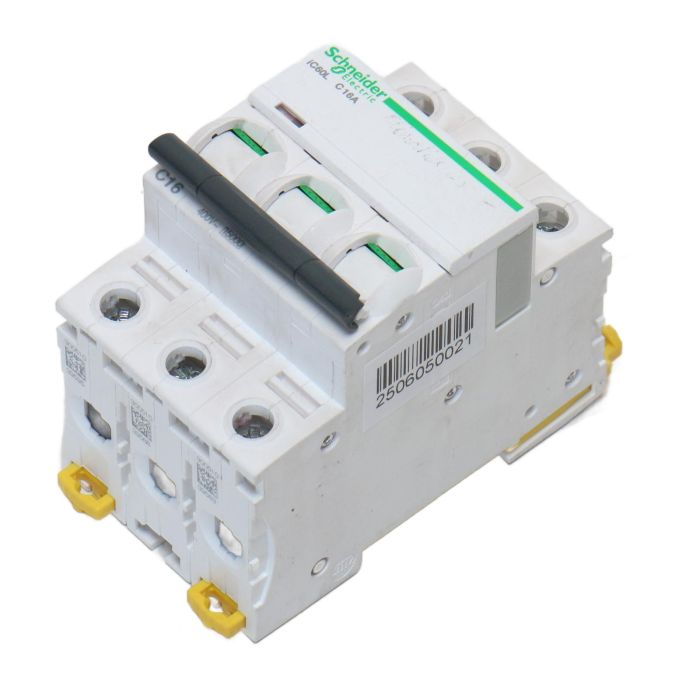

A9F94316, Schneider Electric iC60L - Circuit breaker 3P - In=16A - C-characteristic

Product Description

Schneider Electric iC60L - Circuit breaker 3P - In=16A - C-characteristic. Suitable for various applications with features like Nom. breaking capacity, Voltage type AC/DC, and Energy limitation class 3.

Product Specifications

Number of secured poles: 3
Nom. (measuring) voltage (V): 400
Nom. breaking capacity Icn EN 60898 at 230 V (kA): 15
Nom. breaking capacity Icn EN 60898 at 400 V (kA): 15
Nom. breaking capacity Icu IEC 60947-2 at 230 V (kA): 50
Nom. breaking capacity Icu IEC 60947-2 at 400 V (kA): 25
Voltage type: AC/DC
Energy limitation class: 3
Frequency (Hz): 50/60
Co-switching neutral: No
Overvoltage category: 4
Pollution degree: 3
Width in module units: 3
Subdevice possible: Yes
Degree of protection (IP): IP20
Nom. insulation voltage Ui (V): 500
Nom. impulse withstand voltage (Uimp) (kV): 6
Ambient temperature during operation (°C): -35/70
Connectable conductor cross-section multi-wire (mm²): 1/16
Connectable conductor cross-section single-wire (mm²): 1/25
Explosion-proof: No
Flush-mounted installation (plasterwork): No
Installation depth (mm): 44.50
Loss power (W): 2.40

Product Label Info

Model Code / Product Markings: A9F94316

3606480084447, All12, 14mm, 2Nm, m, IEC/EN 60898-1, Ue=400V, Icn=15000A, 50/60Hz, IEC/EN 60947-2, li=8ln (C), Tref=50°C, 50/60Hz, Ue, Icu, Ics/Icu, 240V, 50KA, 100%, 415V, 25kA, 50%, 440V, 20kA, 50%, Uimp=6kV, Deg 3, Ui=500V, Cat A, CE, Made in, FRANCE

EAN (GTIN-13): 3606480084447

Application

Ideal for use in industrial electrical power transmission systems.

Country of Origin

This product is manufactured in FRANCE.

Method of Application

Follow recommended installation guidelines provided by Schneider Electric for optimal performance.

Safety Instructions

Handle with care and ensure proper grounding during installation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Schneider Electric iC60L used for?

This part is typically used in industrial electrical power transmission systems. It handles circuit protection and is known for its reliability.

What are the key advantages of Schneider Electric iC60L?

The Schneider Electric iC60L offers high breaking capacity, energy limitation, and protection in various applications.

Is A9F94316 compatible with my system?

If you're using Schneider Electric control systems, especially in the electrical power transmission field, then this model will likely be compatible. Contact us to verify.

Alternatives to A9F94316

If you're looking for a similar circuit breaker, consider exploring other Schneider Electric models with different specifications that may better suit your system requirements.
