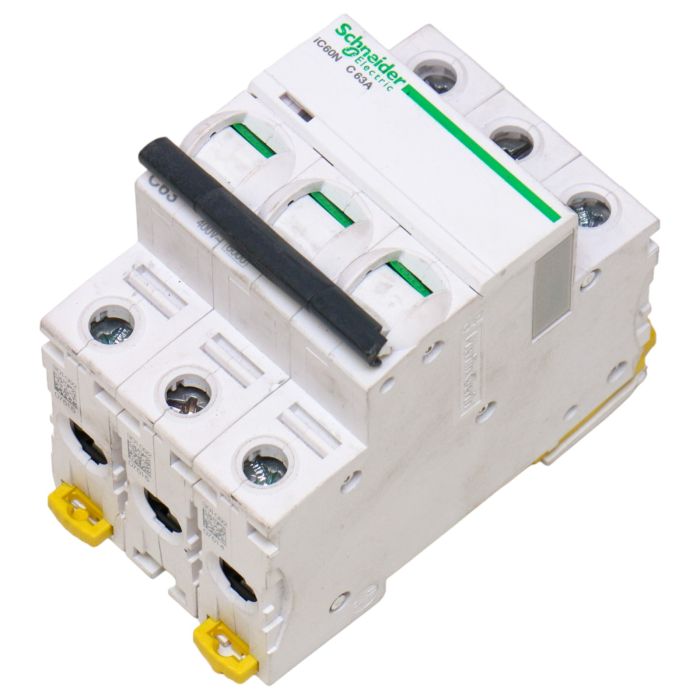

Miniature circuit-breaker, Acti9 iC60N, 3P, 63 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2): Specifications, Main, Device application, Distribution, Range, Acti9, Product name, Acti9 iC60, Product or component type, Miniature circuit-breaker, Device short name, IC60N, Poles description, 3P, Number of protected poles, 3, [In] rated current, 63 A, Network type, AC, DC, Trip unit technology, Thermal-magnetic, Curve code, C, Breaking capacity, 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2, Utilisation category, Category A conforming to EN 60947-2, Category A conforming to IEC 60947-2, Suitability for isolation, Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, Yes conforming to IEC 60898-1, Yes conforming to IEC 60947-2, Standards, EN 60947-2, EN 60898-1, IEC 60947-2, IEC 60898-1, Quality labels, NF, Complementary, Network frequency, 50/60 Hz, Magnetic tripping limit, 8 x In +/- 20 %, [Ics] rated service breaking capacity, 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz, 7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz, 15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz, 7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz, 4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz, 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz, 6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz, 10 kA 100 % conforming to IEC 60947-2 - 125...180 V DC, 10 kA 100 % conforming to EN 60947-2 - 125...180 V DC, [Ui] rated insulation voltage, 500 V AC 50/60 Hz conforming to EN 60947-2, 500 V AC 50/60 Hz conforming to IEC 60947-2, [Uimp] rated impulse withstand voltage, 6 kV conforming to EN 60947-2, 6 kV conforming to IEC 60947-2, Contact position indicator, Yes, control type, Toggle, local signalling, Trip indicator, Mounting mode, Fixed, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top or bottom: YES, 9 mm pitches, 6, height, 85 mm, Width, 54 mm, Depth, 78.5 mm, Net weight, 0.375 kg, Colour, White, Mechanical durability, 20000 cycles, Electrical durability, 10000 cycles, Connections - terminals, Single terminal (top or bottom) 1…35 mm² rigid, Single terminal (top or bottom) 1…25 mm² flexible, Wire stripping length, 14 mm for top or bottom connection, Tightening torque, 3.5 N.m top or bottom, earth-leakage protection, Separate block, Environment, IP degree of protection, IP20 conforming to IEC 60529, IP20 conforming to EN 60529, Pollution degree, 3 conforming to EN 60947-2, 3 conforming to IEC 60947-2, Overvoltage category, IV, Tropicalisation, 2 conforming to IEC 60068-1, Relative humidity, 95 % at 55 °C, Operating altitude, 0...2000 m, ambient air temperature for operation, -35…70 °C, Ambient air temperature for storage, -40…85 °C.

• Specifications:
• Main: Device application
• Distribution: Range
• Acti9: Product name
• Acti9 iC60: Product or component type
• IC60N: Device short name
• 3P: Poles description
• Number of protected poles: 3
• In rated current: 63 A
• Network type: AC, DC
• Trip unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
• Utilisation category: Category A conforming to EN 60947-2
• Standards:
• EN 60947-2
• EN 60898-1
• IEC 60947-2
• IEC 60898-1
• Complementary:
• Network frequency: 50/60 Hz
• Magnetic tripping limit: 8 x In +/- 20%
• Ics rated service breaking capacity: 15 kA 75% conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
• Mechanical:
• Height: 85 mm
• Width: 54 mm
• Depth: 78.5 mm
• Net weight: 0.375 kg
• Environment:
• IP degree of protection: IP20 conforming to IEC 60529
• Pollution degree: 3 conforming to EN 60947-2
• Operating altitude: 0...2000 m
• ambient air temperature for operation: -35…70 °C
