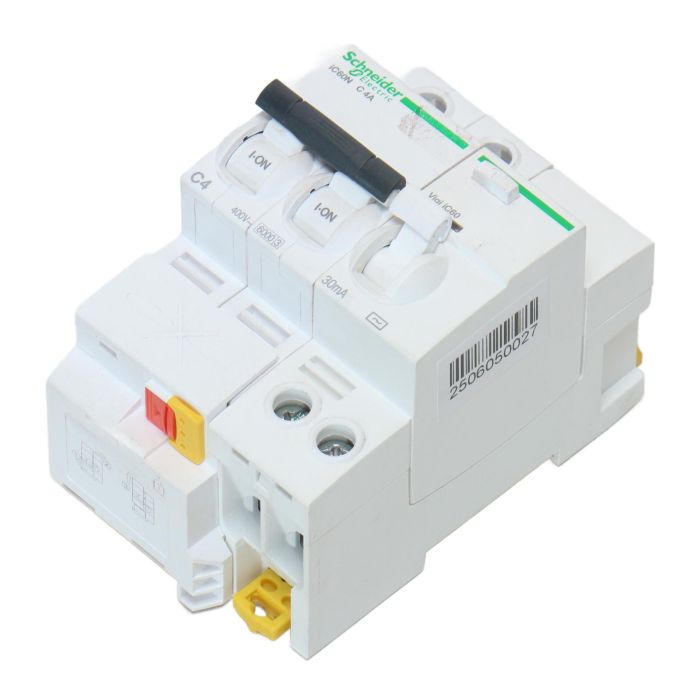

Miniature Circuit-Breaker A9F74204 + Add-on Residual Current Device A9Q11225

Product Description

Miniature circuit-breaker and add-on residual current device designed for electrical power transmission applications.

Product Specifications

Miniature Circuit-Breaker A9F74204:
- Poles: 2P
- Rated Current: 4 A
- Curve Code: C
- Breaking Capacity: 6000 A Icn, 50 kA Icu
- Utilisation Category: Category A
- Suitability for Isolation: Yes

Add-on Residual Current Device A9Q11225:
- Poles: 2P
- Rated Current: 25 A
- Earth-Leakage Sensitivity: 30 mA
- Earth-Leakage Protection Type: Type AC
- Rated Operational Voltage: 230-240 V AC

Product Label Info

Model Code / Product Markings: A9F74204

EAN (GTIN-13): 3606480080357, 3606480393419

2Nm, 14mm, IEC/EN 60898-1, Ue=400V, Icn=6000A, 50/60Hz, IEC/EN 60947-2, li=8ln (C), Tref=50°C, 50/60Hz, Ue, Icu, Ics/Icu, 240V, 50kA, 100%, 415V, 50kA, 100%, 440V, 25kA, 100%, Uimp=6kV, Deg 3, Ui=500V, Cat A, CE, Made in FRANCE, Schneider Electric, CS 30323, F-92506 Rueil-Malmaison Cedex

Application

These devices are typically used in distribution systems for electrical power transmission.

Country of Origin

This product is manufactured in FRANCE.

Method of Application

Follow manufacturer guidelines for installation and integration into your system.

Safety Instructions

Handle with care and ensure proper grounding during installation.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.
