iC60N - miniature circuit breaker - 2P - 2A - C curve: Specifications, Main, Device application, Distribution, Range, Acti9, Product name, Acti9 iC60, Product or component type, Miniature circuit-breaker, Device short name, IC60N, Poles description, 2P, Number of protected poles, 2, [In] rated current, 2 A, Network type, AC, DC, Trip unit technology, Thermal-magnetic, Curve code, C, Breaking capacity, 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1, 50 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2, 25 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2, 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2, Utilisation category, Category A conforming to EN 60947-2, Category A conforming to IEC 60947-2, Suitability for isolation, Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, Yes conforming to IEC 60898-1, Yes conforming to IEC 60947-2, Standards, IEC 60898-1, EN 60898-1, IEC 60947-2, EN 60947-2, Quality labels, NF, Complementary, Network frequency, 50/60 Hz, Magnetic tripping limit, 8 x In +/- 20 %, [Ics] rated service breaking capacity, 50 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz, 50 kA 100 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 25 kA 100 % conforming to EN 60947-2 - 440 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz, 25 kA 100 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz, 50 kA 100 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 50 kA 100 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz, 6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz, 6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz, 10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC, 10 kA 100 % conforming to EN 60947-2 - 72...125 V DC, Limitation class, 3 conforming to EN 60898-1, 3 conforming to IEC 60898-1, [Ui] rated insulation voltage, 500 V AC 50/60 Hz conforming to EN 60947-2, 500 V AC 50/60 Hz conforming to IEC 60947-2, [Uimp] rated impulse withstand voltage, 6 kV conforming to EN 60947-2, 6 kV conforming to IEC 60947-2, Contact position indicator, Yes, control type, Toggle, local signalling, Trip indicator, Mounting mode, Fixed, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top or bottom: YES, 9 mm pitches, 4, height, 85 mm, Width, 36 mm, Depth, 78.5 mm, Net weight, 0.25 kg, Colour, White, Mechanical durability, 20000 cycles, Electrical durability, 10000 cycles, Connections - terminals, Single terminal (top or bottom) 1…25 mm² rigid, Single terminal (top or bottom) 1…16 mm² flexible, Wire stripping length, 14 mm for top or bottom connection, Tightening torque, 2 N.m top or bottom, earth-leakage protection, Separate block, Environment, IP degree of protection, IP20 conforming to IEC 60529, IP20 conforming to EN 60529, Pollution degree, 3 conforming to EN 60947-2, 3 conforming to IEC 60947-2, Overvoltage category, IV, Tropicalisation, 2 conforming to IEC 60068-1, Relative humidity, 95 % at 55 °C, Operating altitude, 0...2000 m, ambient air temperature for operation, -35…70 °C, Ambient air temperature for storage, -40…85 °C, Include: cti 9 - Auxiliary contact iOF - 1 C/O - AC/DC, Specifications, Main, range of product, Acti9, Product or component type, OC contact, Device short name, iOF, Signal contacts composition, 1 C/O, [In] rated current, AC-12 6 A at 240 V, AC 50/60 Hz, AC-12 3 A at 415 V, AC 50/60 Hz, DC-12 2 A at 48 V, DC, DC-12 1.5 A at 60 V, DC, DC-12 1 A at 130 V, DC, DC-12 6 A at 24 V, DC, 9 mm pitches, 1, Complementary, [Ui] rated insulation voltage, 500 V, [Uimp] rated impulse withstand voltage, 4 kV, Mounting mode, Clip-on, mounting support, DIN rail, Comb busbar and distribution block compatibility, Top: YES, height, 86 mm, Width, 9 mm, Depth, 73 mm, Net weight, 32 g, Colour, White, Connections - terminals, Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigid, Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexible, Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigid, Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule, Wire stripping length, 10 mm, Tightening torque, 1 N.m, Environment, Standards, EN/IEC 60947-5-1, IP degree of protection, IP20 conforming to EN/IEC 60947-5-1, Pollution degree, 3 conforming to EN/IEC 60947-5-1, Tropicalisation, 2 conforming to EN/IEC 60947-5-1, ambient air temperature for operation, -35…70 °C, Ambient air temperature for storage, -40…85 °C

• Specifications:
  • Main range of product: Acti9
  • Product or component type: Miniature circuit-breaker
  • Device short name: IC60N
  • Poles description: 2P
  • Number of protected poles: 2
  • [In] rated current: 2 A
  • Network type: AC, DC
  • Trip unit technology: Thermal-magnetic
  • Curve code: C
  • Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz
  • Utilisation category: Category A
• Main:
  • Product name: Acti9 iC60
  • Product or component type: Miniature circuit-breaker
  • Device short name: IC60N
  • Poles description: 2P
  • Number of protected poles: 2
• Device application:
  • Distribution
• Range:
  • Acti9
• Acti9:
  • Product name: Acti9 iC60
  • Product or component type: Miniature circuit-breaker
  • Device short name: IC60N

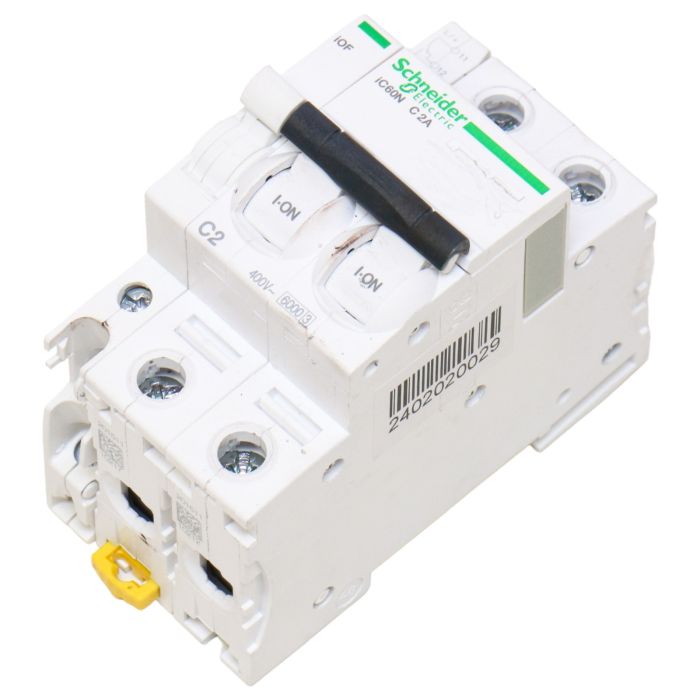

Schneider Electric A9F74202 + A9A26924 is a high-quality item designed for industrial applications. This product is perfect for controlling electrical circuits and ensuring safety in various industrial settings. You can purchase this item at PLC2Day for all your industrial automation needs.
