• Range of Product: 9007
• Series name: Severe duty mill
• Product or Component Type: Limit switch
• Device Application: Universal mill switch
• Device short name: 9007T/FT
• Body type: Fixed
• Head type: Rotary head
• Sale per indivisible quantity: 1
• Complementary: Base plate style: Style B
• Body material: Cast zinc
• Fixing Mode: By the body
• Movement of operating head: Rotary
• Type of operator: Spring return without operating lever
• Contact sequence number: 4
• Function Available: Neutral position
• Switch actuation: CW and CCW
• Type of approach: Lateral approach
• Electrical connection: Screw-clamp terminals AWG 22...AWG 12
• Cable entry: 1 entry for 1/2' - 14 NPT ANSI B1.20.1
• Number of poles: 1
• Switch Function: SPDT-DB
• Contact form: Form Z
• Contact operation: Snap action
• Contacts material: Silver flashed copper
• Positive opening: Without
• Minimum torque for tripping: 12 lbf.in (1.36 N.m)
• Maximum actuation speed: 130 ft/min with 30° cam angle, levers only, 90 ft/min with 45° cam angle, levers only
• Tripping angle: 6 °
• Maximum displacement angle: 89 °
• Repeat accuracy: +/- 0.004 in linear travel of cam on 1.5 in lever arm
• Contact code designation: A600
• NEMA rating designation: A600, AC (Ue = 600 V) Ie = 5 A
• [Ithe] conventional enclosed thermal current: 20 A
• [Ui] rated insulation voltage: 600 V 3)IEC 609470-1, 600 V 3)UL 508, 600 V 3)CSA C22.2 No 14
• [Uimp] rated impulse withstand voltage: 2.5 kV AC for 1 minute CE, 2.2 kV AC for 1 minute UL, 2.64 kV AC for 1 minute CSA
• Short-circuit protection: 20 A Bussmann class CC KTK-R-21 fuse non-time delay
• Width: 2.25 in (57.15 mm)
• Height: 4.66 in (118.36 mm)
• Depth: 2.44 in (61.98 mm)
• Net Weight: 2.5 lb(US) (1.13 kg)
• Terminals description: ISO n°1, B (right side contact), A (left side contact)

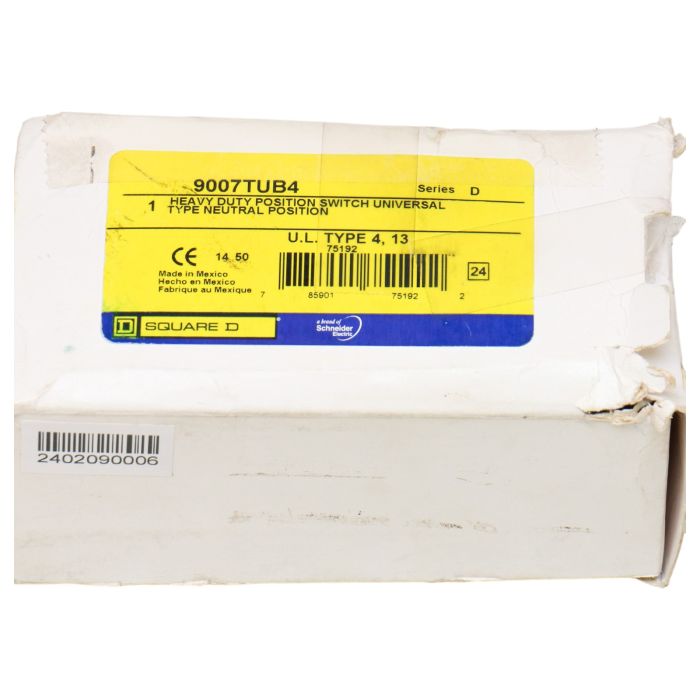

9007TUB4 Schneider Electric is a high-quality industrial sensor used in various applications such as manufacturing, automation, and control systems. This reliable sensor can be purchased at PLC2Day.
