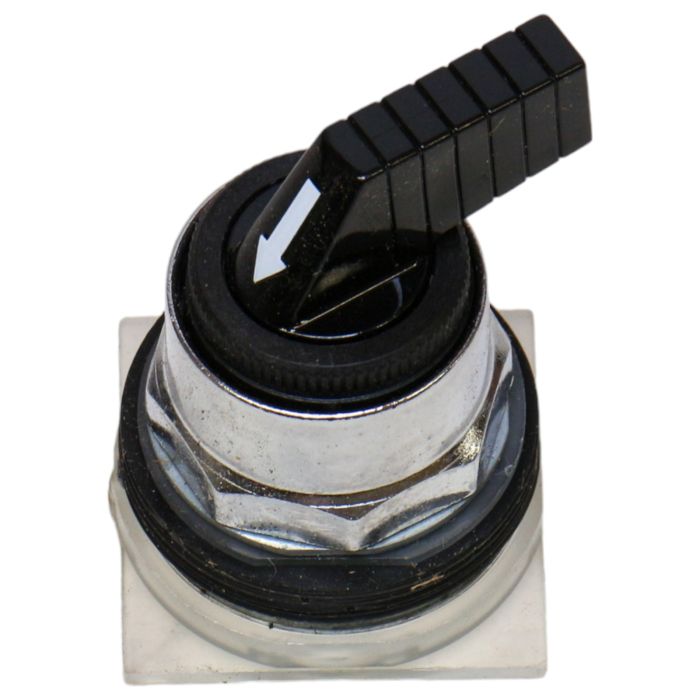

Head for selector switch, Harmony 9001K, metal, long handle, black, 30mm, 2 positions, stay put: Specifications, Main, Range of produc, Harmony 9001K, Product or component type, Head for selector switch, Device short name, 9001K, Type of operator, Stay put, Operator profile, Black long handle, Complementary, bezel material, Metal, Mounting diameter, 1.18 in (30 mm), Net weight, 0.38 lb(US) (0.172 kg), Shape of signaling unit head, Octagonal, Operator position information, 2 positions, Contacts type and composition, Without contact block, Mechanical durability, 500000 cycles, Product compatibility, 9001KA2 side 1 or 2, device presentation, Basic element, Cap/operator or lens colour, Black, Operator profile, Long handle, Type of operator, Stay put, Size, 30 mm, Cam profile, 5, Environment, Protective treatment, TC, Ambient air temperature for storage, -40…158 °F (-40…70 °C), ambient air temperature for operation, -13…158 °F (-25…70 °C), Overvoltage category, Class II IEC 61140, IP degree of protection, IP66 IEC 60529, NEMA degree of protection, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, Standards, CSA C22.2 No 14, IEC 60947-5-4, JIS C 852, IEC 60947-5-1, IEC 60947-1, JIS C 4520, UL 508, product certifications, NEMA, UL 508, Vibration resistance, 7 gn 2…500 Hz)IEC 60068-2-6, Shock resistance, 50 gn IEC 60068-2-27

• Specifications:
• Main: Range of product: Harmony 9001K
• Product or component type: Head for selector switch
• Device short name: 9001K
• Type of operator: Stay put
• Operator profile: Black long handle
• Complementary:
• Bezel material: Metal
• Mounting diameter: 1.18 in (30 mm)
• Net weight: 0.38 lb(US) (0.172 kg)
• Shape of signaling unit head: Octagonal
• Operator position information: 2 positions
• Contacts type and composition: Without contact block
• Mechanical durability: 500000 cycles
• Product compatibility: 9001KA2 side 1 or 2
• Device presentation: Basic element
• Cap/operator or lens colour: Black
• Operator profile: Long handle
• Type of operator: Stay put
• Size: 30 mm
• Cam profile: 5
• Environment:
• Protective treatment: TC
• Ambient air temperature for storage: -40…158 °F (-40…70 °C)
• Ambient air temperature for operation: -13…158 °F (-25…70 °C)
• Overvoltage category: Class II IEC 61140
• IP degree of protection: IP66 IEC 60529
• NEMA degree of protection: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
• Standards:
• CSA C22.2 No 14
• IEC 60947-5-4
• JIS C 852
• IEC 60947-5-1
• IEC 60947-1
• JIS C 4520
• UL 508
• Product certifications: NEMA, UL 508
• Vibration resistance: 7 gn (2…500 Hz) IEC 60068-2-6
• Shock resistance: 50 gn IEC 60068-2-27

9001KS11FB 803990 Schneider Electric is a high-quality industrial push button switch that is ideal for control panels, machinery, and equipment. It is designed for durability and reliability in demanding industrial applications. You can purchase this item at PLC2Day to improve the efficiency and functionality of your industrial processes.
