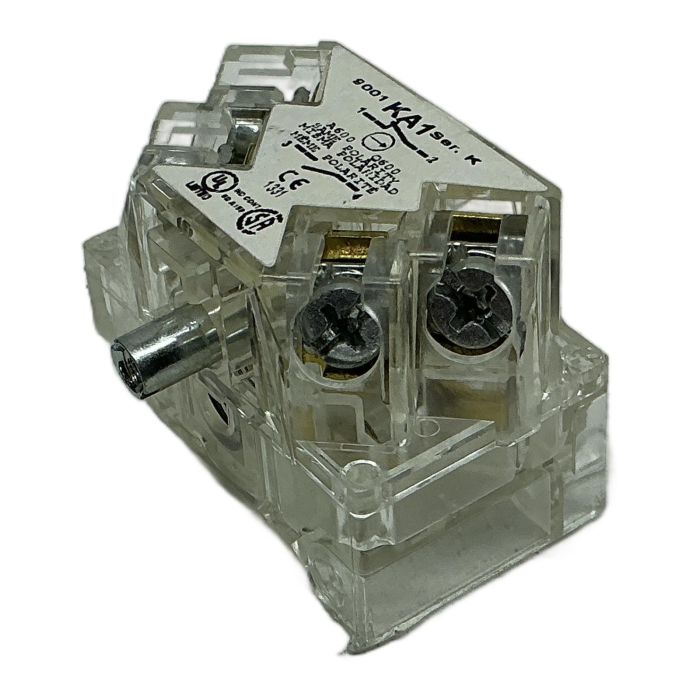

Schneider Electric 9001KA1 Contact Block

Description

The 9001KA1 from Schneider Electric is a standard contact block designed for use with the Harmony 9001K and 9001SK series of 30mm pushbuttons, selector switches, and pilot lights. It provides a reliable switching solution with one normally open and one normally closed contact configuration, suitable for a wide range of industrial control applications. Its robust construction ensures long-term performance in demanding environments.

Specifications

• Manufacturer: Schneider Electric
• Part Number: 9001KA1
• Product Range: Harmony 9001K
• Component Type: Contact Block
• Contact Configuration: 1 NO + 1 NC
• Terminal Type: Screw Clamp
• Rated Voltage: 600V AC
• Rated Current: 10A

Label Info

• Model: 9001 KA1 Ser. K
• Ratings: A600, Q600
• Certifications: UL Listed, CSA, CE

Application

This contact block is typically used in industrial control panels, machinery, and automation systems to control motor starters, relays, and other electrical loads based on operator input from a pushbutton or switch.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 2.0 kg of CO2 emissions associated with the production of a new one.

Availability

Available from stock for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is the 9001KA1 contact block compatible with all Schneider 30mm pushbuttons?

This contact block is specifically designed for the Harmony 9001K and 9001SK series of 30mm operators. Compatibility with other series is not guaranteed.

The screw clamp terminals are designed to accept 1 or 2 wires ranging from 0.5 to 2.5 mm squared, which corresponds to AWG 20 to AWG 14.

Yes, these contact blocks are designed to be stackable, allowing you to create more complex contact arrangements (e.g., 2NO+2NC) on a single pushbutton or selector switch operator.
