Schmidt Armaturen Globe Control Valve Assembly

Description

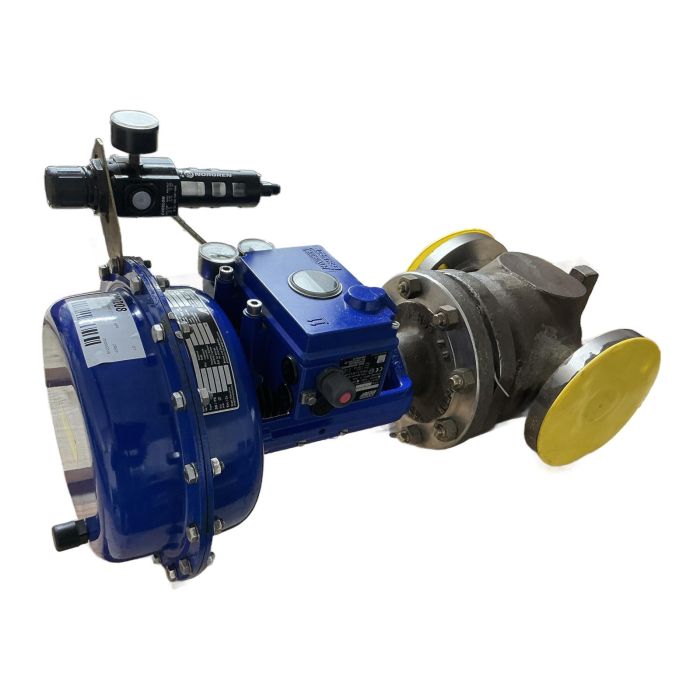

This is a complete, high-performance globe control valve assembly from Schmidt Armaturen. It combines a V713 series valve with an M350 series pneumatic actuator. The unit comes pre-fitted with a Fisher 3582i electro-pneumatic positioner and a Norgren air filter regulator, making it a ready-to-install solution for precise flow control in various industrial processes.

Specifications

• Manufacturer: Schmidt Armaturen
• Valve Type: V713DFVND
• Actuator Type: M350MOZ/30
• Positioner: Fisher Type 3582i
• Size: DN 65 / 2.5 inches
• Pressure Rating: PN 150 / ANSI 150
• Seat Diameter: 65 mm
• Kvs/Cv Value: 65
• Actuator Supply Pressure: 2.7 - 6.3 bar
• Spring Range: 0.8 - 2.4 bar
• Action: Spring Opens (Fail-Open)

Label Info

• Valve Serial No.: Stamped on body (not fully legible)
• Actuator Serial No.: 0096669/36/1
• Internal Tag No.: 200208

Application

Ideal for regulating the flow of liquids, gases, and steam in industries such as chemical processing, power generation, oil and gas, and water treatment.

Country of Origin

Austria

CO2 Impact

Opting for this pre-owned assembly instead of a new one prevents the emission of approximately 170.0 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the input signal required for the Fisher 3582i positioner?
Answer

The Fisher 3582i is an electro-pneumatic positioner that typically accepts a 4-20 mA analog current signal from a controller for precise valve positioning.

The actuator nameplate indicates 'Feder oeffnet' (spring opens), which means the valve is configured to fail-open upon loss of compressed air supply. This configuration can often be reversed if required.

While the exact material grade is not specified on the visible label, globe valves of this class are typically made from robust materials like Cast Steel (e.g., A216 WCB) for the body and Stainless Steel for the internal trim to ensure durability and resistance to corrosion.
