Schaeffler INA VSU250955 Slewing Ring Bearing

Description

This robust Schaeffler INA slewing ring bearing, model VSU250955, is a four-point contact bearing designed for heavy-duty industrial applications. Featuring external gear teeth and dimensions of 989x1205x80 mm, it offers exceptional load-bearing capacity and reliability for machinery such as cranes, excavators, and wind turbines.

Specifications

• Manufacturer: Schaeffler (INA)
• Type: VSU250955
• Inner Diameter: 989 mm
• Outer Diameter: 1205 mm
• Height: 80 mm
• Gearing: External
• Weight: Approx. 200 kg

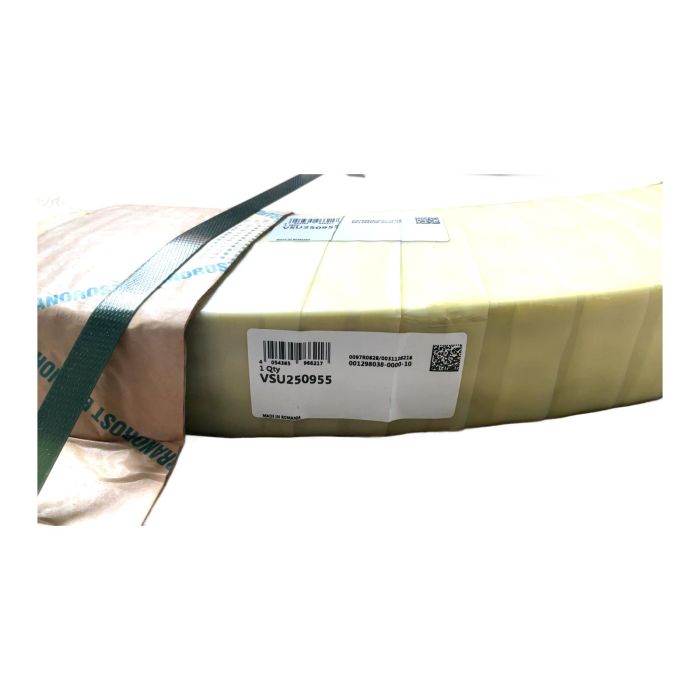

Label Info

• Part Number: VSU250955
• EAN: 4054365964217
• Production Code: 0097R0828/0031128216

Application

Ideally suited for use in construction machinery, cranes, wind turbines, and other heavy rotating systems that need to accommodate axial, radial, and tilting moment loads simultaneously.

Country of Origin

Made in Romania.

CO2 Impact

By choosing this reused steel bearing, you save approximately 400 kg of CO2. This is equivalent to the emissions from driving a car for 2000 kilometers, making a significant contribution to a more sustainable industry.

Availability

This product is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What are the key mounting and lubrication requirements for the VSU250955 slewing ring?

Correct mounting is critical. The mounting structure must be flat and rigid to prevent distortion. Use grade 10.9 bolts torqued to the manufacturer's specification in a star pattern. For lubrication, a high-pressure EP (Extreme Pressure) grease suitable for rolling bearings should be used, applied through the grease nipples to purge old grease and ensure all raceways and gears are protected.

The VSU250955 features external gear teeth. According to the Schaeffler datasheet, the gear module is 10. This specification is crucial for matching the bearing with the corresponding drive pinion.

Yes, as a four-point contact bearing, the VSU250955 is specifically designed to accommodate a combination of loads. It can handle significant axial and radial forces as well as tilting moments from a single bearing position, making it ideal for applications like cranes and excavators.
