SBK Flanged Sleeve Bearing 20x26x16mm 020/026x16-32x03

Description

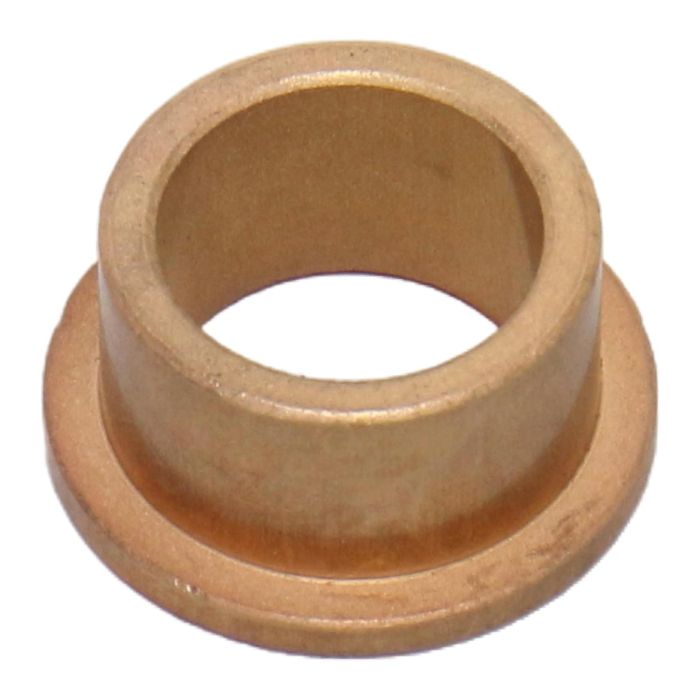

This is an SBK flanged sleeve bearing, model 020/026x16-32x03, designed for industrial applications requiring reliable, low-friction guidance. The bearing is made from sintered bronze, which provides self-lubricating properties and a long service life, even in demanding environments. It is ideal for rotational, oscillating, and linear movements.

Specifications

• Inner Diameter: 20 mm
• Outer Diameter: 26 mm
• Length: 16 mm
• Flange Diameter: 32 mm
• Flange Thickness: 3 mm
• Material: Sintered Bronze (presumed)
• Condition: New

Label Info

• Manufacturer: SBK
• Type Number: 020/026x16-32x03

Application

These bushings are widely used in general machine building, agricultural equipment, construction machinery, and hydraulic cylinders where a robust bearing solution is required.

Country of Origin

Germany (estimated based on typical suppliers for this type of component).

CO2 Impact

By choosing this reused component, you save approximately 0.3 kg of CO2. This is equivalent to the energy needed to charge your smartphone 36 times, making a positive impact on the environment.

Availability

This item is in stock and ready for immediate dispatch. Limited quantity available. Order now from PLC2Day for expert support and fast delivery.

FAQ

For a press-fit application, a shaft with an h7 or h8 tolerance is typically recommended, depending on the specific application and required fit.

Yes, sintered bronze bearings are oil-impregnated and are self-lubricating under normal operating conditions. For heavy-duty applications or high speeds, periodic re-lubrication can extend its service life.

These bearings typically consist of a bronze alloy (copper and tin), with graphite particles and oil impregnated into the porous structure to provide its self-lubricating properties.
