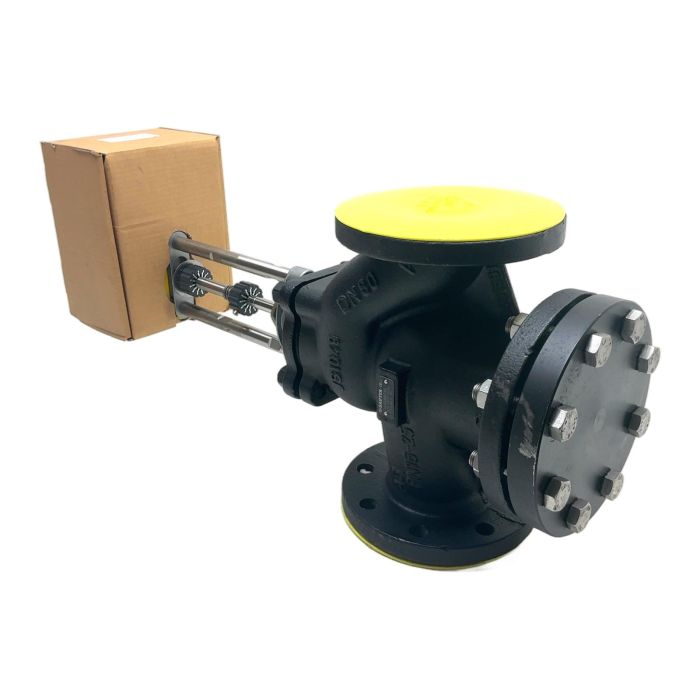

Sauter VUG080F304 DN 80 Three-way Control Valve with AVM234S F132 Actuator

Description

This is a complete, high-performance control valve assembly from Sauter, combining the robust VUG080F304 three-way valve with the reliable AVM234S F132 electric actuator. Designed for modulating control in heating, ventilation, and air-conditioning systems, this unit provides precise regulation of water or steam flow. Its durable ductile iron construction ensures a long service life in demanding industrial and commercial environments.

Specifications

• Manufacturer: Sauter
• Valve Model: VUG080F304
• Actuator Model: AVM234S F132
• Valve Type: 3-way, flanged
• Nominal Diameter: DN 80
• Pressure Rating: PN 25
• Flow Coefficient (Kvs): 100 m3/h
• Maximum Medium Temperature: 240 deg C
• Body Material: Ductile Iron (EN-GJS-400-18-LT / JS1049)
• Actuator Control Signal: 3-point

Label Info

• Valve Plate: SAUTER VUG080F304, PN 25, 240 C, Kvs 100, PT 37.5
• Actuator Box: SAUTER AVM234S F132, F1036

Application

This control valve is ideally suited for applications in district heating plants, large-scale HVAC systems, and industrial process control where precise temperature and flow regulation is critical.

Country of Origin

Made in Switzerland.

CO2 Impact

By choosing this pre-owned item, you are helping to avoid approximately 181 kg of CO2 emissions associated with the production of a new unit. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Sauter AVM234S is a 3-point actuator, designed for open/stop/close control signals from a suitable controller.

Yes, with a maximum temperature rating of 240 deg C and a PN 25 pressure rating, it is suitable for many low-to-medium pressure steam applications. Always verify compatibility with your specific system parameters.

Yes, this unit is supplied as a complete, pre-assembled valve and actuator combination. It is recommended to perform a function test upon installation to ensure proper operation and stroke alignment.
