SAUTER Control Valve Assembly

Description

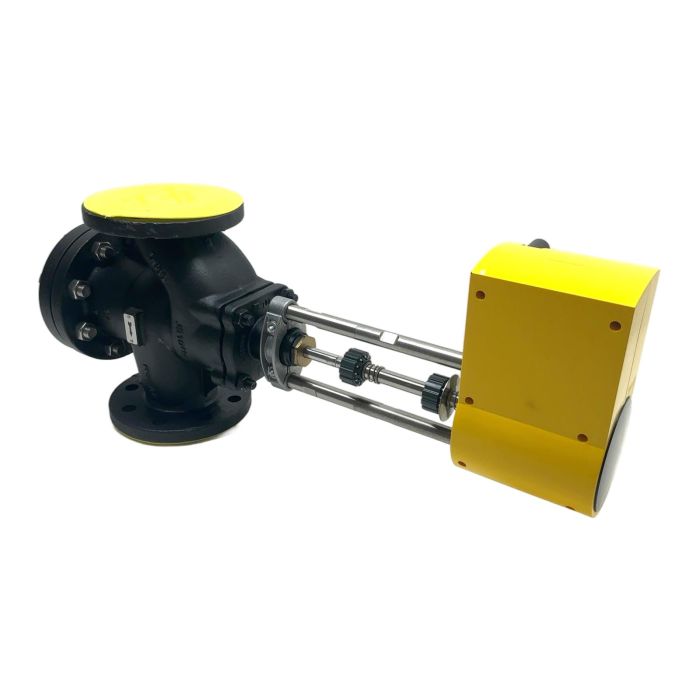

This is a complete, pre-assembled control valve unit from SAUTER, combining the VUG065F304 valve with the powerful AVM234S F132 electric actuator. Designed for modulating control in heating, cooling, or industrial process systems, this assembly offers precision and durability. The valve is constructed from robust spheroidal graphite iron and is suitable for high temperatures and pressures.

Specifications

• Manufacturer: SAUTER
• Valve Model: VUG065F304
• Actuator Model: AVM234S F132
• Connection: Flange, DN 65
• Pressure Class: PN 25
• Flow Coefficient (Kvs): 63 m3/h
• Max Medium Temperature: 240 deg C
• Actuator Power Supply: 24V AC/DC
• Actuating Force: 2500 N
• Stroke: 40 mm
• Protection Class: IP66

Label Info

• Valve Body: SAUTER VUG065F304, PN 25, 240C, Kvs63
• Actuator: SAUTER AVM234S F132, 24V -/=, 2500N, 40mm, IP66

Application

Ideal for precise fluid control in district heating, HVAC systems, and various industrial processes where high pressure and temperature resistance is required.

Country of Origin

The actuator is manufactured in Switzerland.

CO2 Impact

Opting for this component saves an estimated 98 kg of CO2 compared to producing a new one. This is comparable to the emissions of a 490 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The AVM234S is typically a 3-point actuator, controlled by switching the 24V supply between its directional control terminals. It can also be used with proportional controllers that provide a 3-point output.

Yes, with a maximum medium temperature rating of 240 deg C and a PN 25 pressure rating, this valve is suitable for many low to medium pressure steam applications. Always verify compatibility with your specific process parameters.

Yes, the VUG is a three-port valve. The blanking flange allows it to be used as a two-port through-valve. By removing the blanking flange and connecting a pipe, it can be used in mixing or diverting applications as originally designed.
