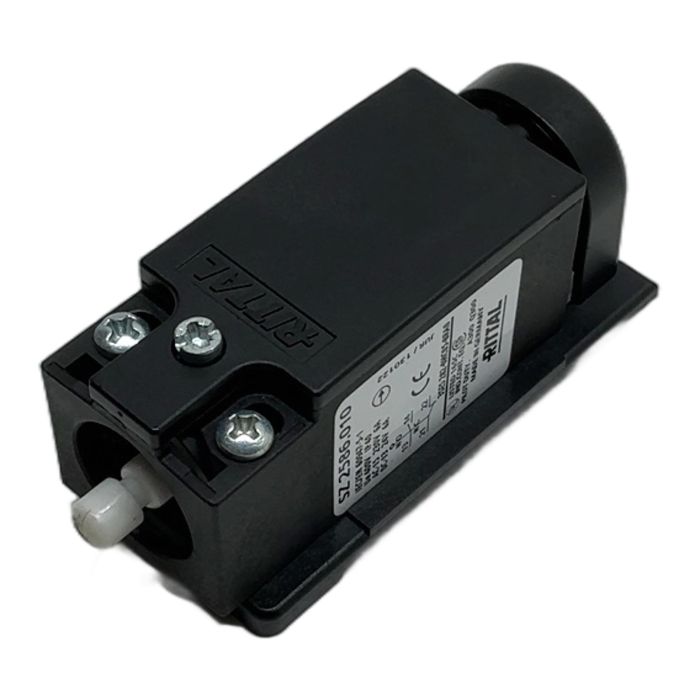

Rittal SZ 2586.010 Door-Operated Switch

Description

The Rittal SZ 2586.010 is a high-quality door-operated switch, designed for seamless integration into Rittal enclosure systems. It is primarily used to control cabinet lighting, activating the light when the door is opened. Manufactured by Siemens for Rittal, this switch ensures reliability and performance. Its dual normally closed contacts provide versatile options for signaling and control applications.

Specifications

• Manufacturer: Rittal
• Part Number: SZ 2586.010
• OEM Part Number: 3SE5282-0HC05-8RA0 (Siemens)
• Contact Configuration: 2 Normally Closed (NC)
• Rated Voltage (Ue): 400V
• Operational Current (AC-15): 6A at 230V
• Operational Current (DC-13): 6A at 24V
• Protection Rating: IP40
• Actuator Type: Plunger
• Standards: IEC/EN 60947-5-1, UL Listed

Label Info

• Brand: RITTAL
• Model: SZ 2586.010
• Approvals: CE, UL

Application

This door-operated switch is ideal for applications in industrial control cabinets, server racks, and electrical enclosures for controlling interior lighting, fans, or sending a door status signal to a PLC or monitoring system.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you contribute to the circular economy and help avoid approximately 4 kg of CO2 emissions compared to a new purchase. This saving is equivalent to the emissions from driving a standard car for 20 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Having two Normally Closed contacts allows for redundant signaling for critical applications or the ability to control two separate circuits with a single switch. For example, one contact could control a light while the other sends a status signal to a controller.

No, this is a standard position switch and is not rated for safety applications. For machine safety, a dedicated safety interlock switch with positively driven contacts must be used.

This switch is specifically designed for tool-free, quick-assembly mounting on Rittal TS, SE, and PC enclosure profiles or compatible mounting plates.
