Rittal SV9343.050 3-Pole NH00 Fuse Switch Disconnector

Description

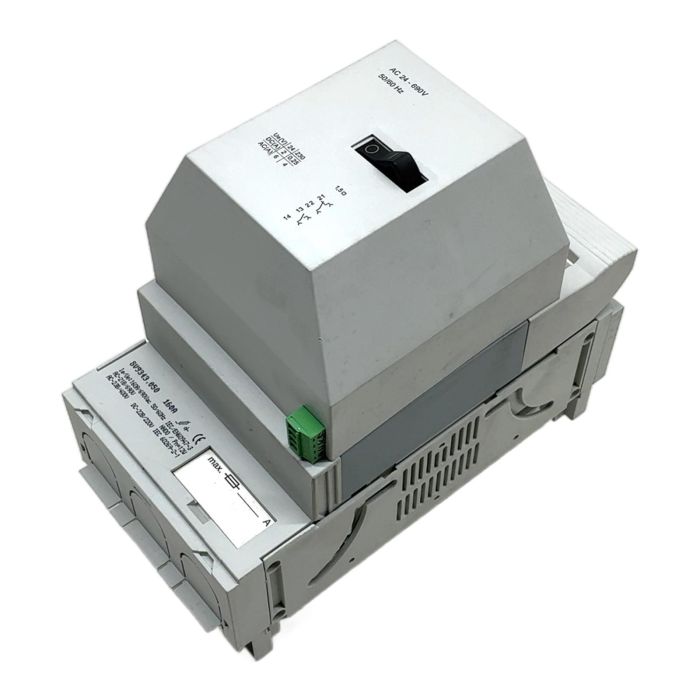

The Rittal SV9343.050 is a high-quality 3-pole fuse switch disconnector designed for NH size 00 fuses. It provides dependable circuit protection for industrial applications with a rated current of 160A and a maximum voltage of 690V AC. This unit is specifically engineered for seamless integration into Rittal's RiLine60 busbar systems, offering a safe and space-saving solution for power distribution and control panels.

Specifications

• Manufacturer: Rittal
• Model: SV9343.050
• Rated Operational Current (Ie): 160 A
• Rated Operational Voltage (Ue): 690V AC, 50/60 Hz
• Number of Poles: 3
• Fuse Size: NH00
• Mounting System: Rittal RiLine60
• Auxiliary Contact Rating: AC 6A/230V, DC 2A/24V

Label Info

• Type: SV9343.050
• Current: 160A
• Voltage: 160A/690Vac 50/60Hz
• Standard: IEC/EN60947-3
• Utilization Categories: AC-21B/690V, AC-23B/400V, DC-22B/220V

Application

This component is ideal for use in power distribution boards, machine control panels, and industrial switchgear assemblies where reliable overcurrent protection and a means of disconnection are required. Its design for the RiLine60 system makes it perfect for compact and modular cabinet layouts.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of approximately 60 kg of CO2. This saving is equivalent to the carbon captured by 3 trees in one year.

Availability

This item is a tested, used product. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This unit is specifically designed for NH size 00 (NH00) fuses. Using other sizes is not possible and would be unsafe.

No, the SV9343.050 is designed for direct mounting on a Rittal RiLine60 busbar system. It features specific connections on the back for this purpose and is not intended for standard DIN rail mounting.

The unit comes with integrated auxiliary contacts for monitoring the switch position. While they are factory-installed, Rittal offers various accessories, but modification of the integrated contacts is generally not recommended and should only be performed by qualified personnel.
