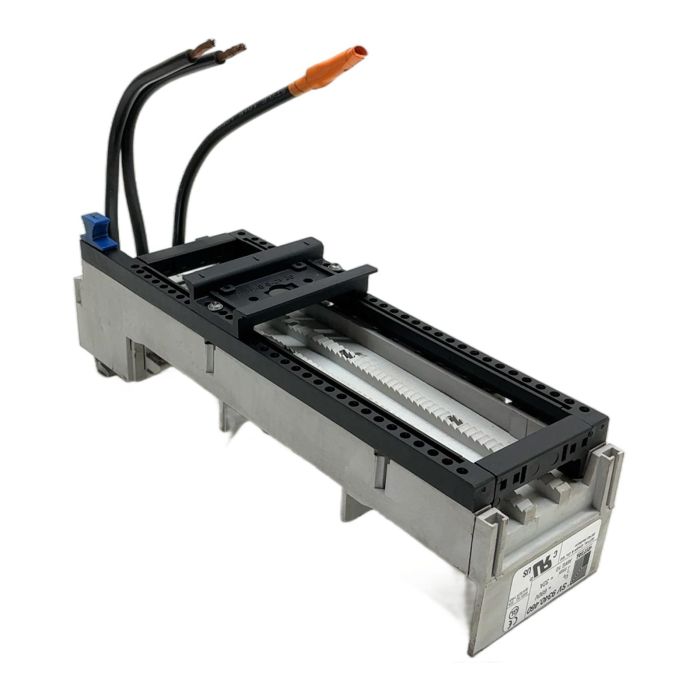

Rittal Busbar Component Adaptor 32A SV 9340.460

Description

The Rittal SV 9340.460 is a component adaptor designed for seamless integration into the RiLine60 busbar system. It facilitates the quick and secure mounting of 45 mm wide switchgear, providing a dependable connection for power distribution applications up to 32A and 690V AC. Its robust design ensures long-term reliability in industrial environments.

Specifications

• Manufacturer: Rittal
• Part Number: SV 9340.460
• Product Family: RiLine60
• Rated Operating Voltage (Ve max): 690V AC
• Rated Current (Ie): 32A
• For Busbar Spacing: 60 mm
• Compatible Component Width: 45 mm
• Connection Type: Screw terminals
• Wire Cross-Section: 2.5 - 16 mm2

Label Info

• RITTAL SV 9340.460
• Ve max = 690V, Ie = 32A
• 600V AC, 32A (cULus)
• AWG 10

Application

This component adaptor is ideal for use in power distribution boards and control cabinets for mounting circuit-breakers, motor starters, and other modular switchgear directly onto a 60mm busbar system, saving space and reducing wiring time.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and helping to avoid approximately 10 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions from driving a car for 50 km.

Availability

This is a pre-owned item in excellent working condition, available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The SV 9340.460 is designed for a wire cross-section of 2.5 to 16 mm squared (AWG 14-6) for finely stranded wires with wire-end ferrules.

This adaptor is specifically designed for mounting switchgear with a width of 45 mm. For other component sizes or types, different adaptors within the Rittal RiLine60 system are required.

The short-circuit rating depends on the combination with the upstream protection device. When used with a size 00 NH fuse-switch disconnector, it typically has a conditional rated short-circuit current (Iq) of 50 kA. Always consult the Rittal system manual for specific application ratings.
