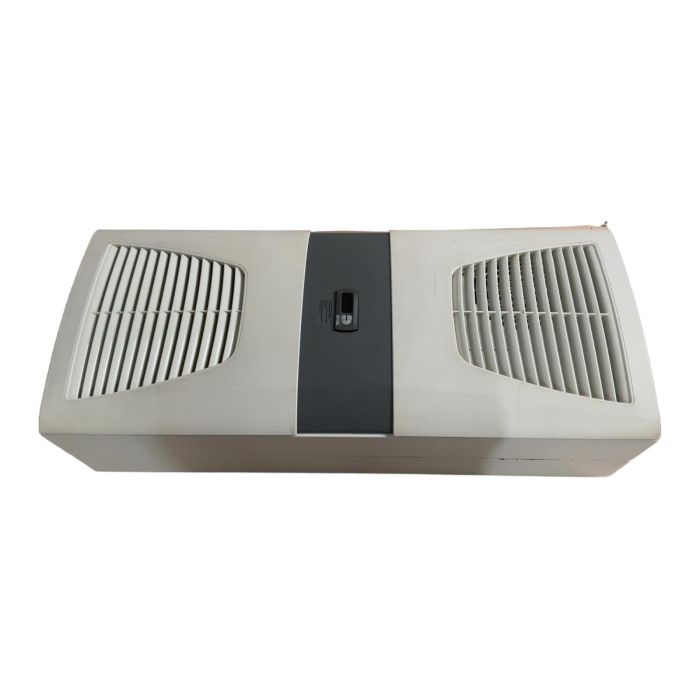

Rittal TopTherm Enclosure Cooling Unit SK 3304540

Description

The Rittal SK 3304540 is a high-efficiency TopTherm wall-mounted cooling unit designed for industrial enclosures. It ensures reliable and precise temperature control, protecting sensitive electronic components from overheating. This unit is ideal for maintaining optimal performance and extending the lifespan of equipment in demanding industrial environments.

Specifications

• Model: SK 3304540
• Series: TopTherm
• Cooling Output at 50Hz (L35 L35): 1000 W
• Cooling Output at 60Hz (L35 L35): 1460 W
• Rated Operating Voltage: 400 V / 50 Hz (3-phase), 460 V / 60 Hz (3-phase)
• Rated Current (max): 2.2 A at 50 Hz / 2.1 A at 60 Hz
• Refrigerant: R134a (325 g)
• Operating Temperature Range: 20 deg C to 55 deg C
• Protection Category (Internal Circuit): IP 54
• Weight: 40 kg

Label Info

• Manufacturer: Rittal GmbH & Co. KG
• Part Number: SK 3304540
• Production Date: 28.08.2013
• Serial Number: 2013K000097273

Application

This cooling unit is designed for mounting on electrical cabinets and enclosures in various sectors, including manufacturing, automation, data centers, and process control, to prevent equipment failure due to excessive heat.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned cooling unit, you help avoid the emission of 510 kg of CO2 required for the production of a new one. This is a sustainable choice for your operations.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the L35 L35 and L35 L50 cooling output ratings?

Answer: These ratings indicate the cooling performance under specific ambient (external) and enclosure (internal) temperature conditions. L35 L35 means an external temperature of 35 deg C and an internal temperature of 35 deg C. L35 L50 refers to an external temperature of 35 deg C and an internal temperature of 50 deg C. The unit provides different cooling power at these setpoints.

Can this unit be used with a 230V single-phase power supply?

Answer: No, this specific model SK 3304540 is designed exclusively for 3-phase power systems, specifically 400V at 50Hz or 460V at 60Hz. Attempting to connect it to a different voltage or phase configuration will damage the unit.

What maintenance is required for the R134a refrigerant in this unit?

Answer: The SK 3304540 is a hermetically sealed unit, meaning the refrigerant circuit is factory-sealed and should not require routine topping up. Maintenance should focus on keeping the condenser and evaporator coils clean and ensuring unobstructed airflow. Any work on the refrigerant circuit must be performed by a certified technician.
