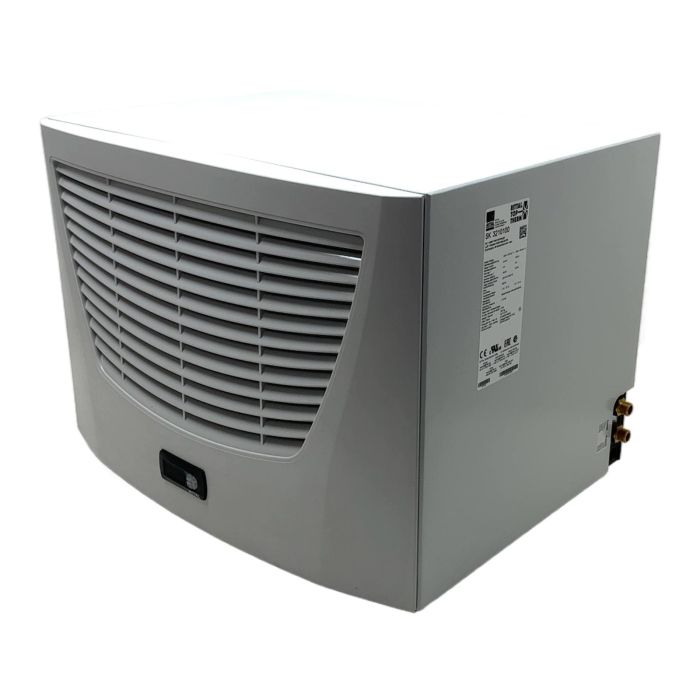

Rittal SK 3210100 TopTherm Heat Exchanger

Description

The Rittal SK 3210100 is a wall-mounted air/water heat exchanger designed for precise and efficient temperature control in industrial enclosures. It provides a powerful 4000W cooling output, making it ideal for applications with high heat loads. Its robust design and IP55 rating ensure reliable performance in harsh industrial settings, protecting critical components from overheating.

Specifications

• Manufacturer: Rittal
• Model: SK 3210100
• Product Line: TopTherm
• Useful Cooling Output: 4000 W (at L35 W10)
• Rated Voltage: 230 V, 50/60 Hz, 1-phase
• Rated Current: 0.44 A (50Hz) / 0.50 A (60Hz)
• Nominal Power Consumption: 100 W (50Hz) / 120 W (60Hz)
• Operating Pressure (Water): 1 to 10 bar
• Water Flow Rate: 400 l/h
• Protection Rating: IP55 according to EN 60529
• Weight: 25.5 kg

Label Info

• Type: SK 3210100
• Production No.: 2018K000184924
• Date of Manufacture: 30.10.2018

Application

This unit is perfectly suited for cooling sealed enclosures in industries such as manufacturing, process automation, and data centers. It is particularly effective where ambient air is contaminated with dust, oil, or aggressive chemicals, as it creates a closed internal loop, preventing contaminants from entering the cabinet.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned heat exchanger prevents the emission of approximately 165.0 kg of CO2 compared to manufacturing a new one. This saving is comparable to the emissions from driving a standard passenger car for 825 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The unit requires an operating pressure between 1 and 10 bar. It uses standard threaded fittings for inlet and outlet connections and is designed for a water flow rate of 400 liters per hour for optimal performance.

Yes, absolutely. With an IP55 rating, it is protected against dust ingress and low-pressure water jets from any direction, making it ideal for most demanding industrial environments.

The SK 3210100 is designed to operate at a fixed speed determined by the 230V, 50/60Hz power supply for consistent and reliable cooling performance. External fan speed control is not a standard feature.
