Rittal KX 1503.000 Terminal Box

Description

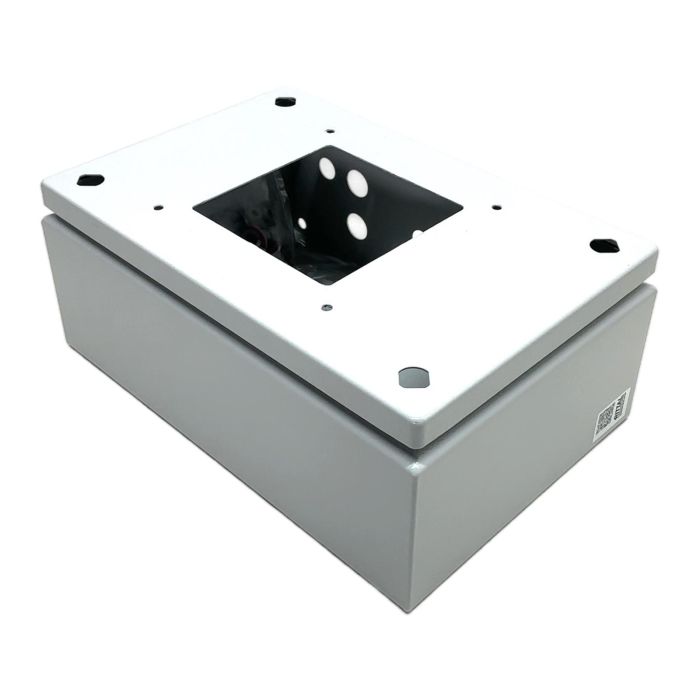

The Rittal KX 1503.000 is a compact and robust terminal box designed for housing electronic and electrical components in industrial environments. Made from high-quality sheet steel and finished in RAL 7035, it provides excellent protection against dust and water ingress. Please note: This specific unit has been modified with custom cutouts on the lid and side panel, making it ready for specific installations.

Specifications

• Manufacturer: Rittal
• Model: KX 1503.000
• Dimensions (W x H x D): 300 x 200 x 120 mm
• Material: Sheet Steel
• Protection Rating: IP66 according to IEC 60 529
• NEMA Rating: NEMA 4
• Color: Light Grey (RAL 7035)
• Includes: Enclosure, lid, mounting screws, and sealing hardware.

Label Info

• Part Number: KX 1503.000
• EAN: 4028177816176

Application

Ideal for use as a junction box or for housing pushbuttons, switches, and small control units. Its IP66 rating makes it suitable for both indoor and outdoor applications where components need protection from harsh conditions.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned item, you are helping to avoid the emission of approximately 5.6 kg of CO2, which is associated with the production of a new unit. This saving is comparable to driving a car for 28 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the IP rating of this enclosure and what does it mean?
The Rittal KX 1503.000 has an IP66 rating. This means it is completely dust-tight (the first '6') and protected against powerful water jets from any direction (the second '6'), making it suitable for harsh industrial environments.

Are the cutouts on this specific unit factory-made or custom?
The cutouts on the lid and side of this particular enclosure are custom modifications. The standard KX 1503.000 is supplied without cutouts, allowing for user-specific hole patterns. This unit is ideal if the existing cutouts match your application requirements.

What material is the enclosure made from and what are its benefits?
This enclosure is made from sheet steel with a durable powder-coat finish in RAL 7035. Sheet steel provides excellent mechanical strength, protecting internal components from impact, and offers good electromagnetic shielding.
