RHP H 315 Adapter Sleeve for 65mm Shaft

Description

This is a genuine RHP H 315 adapter sleeve assembly, designed for mounting bearings with a tapered bore onto cylindrical shafts. It simplifies the bearing arrangement as the shaft does not require a specific shoulder for axial location. This sleeve is suitable for a 65mm shaft diameter and ensures a secure and precise fit. The package includes the adapter sleeve, a KM15 locknut, and an MB15 lock washer (standard). Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: RHP
• Part Number: H 315
• Product Type: Adapter Sleeve
• Shaft Diameter (d1): 65 mm
• Thread Size (d3): M75x2
• Corresponding Locknut: KM15
• Corresponding Lock Washer: MB15
• Taper: 1:12

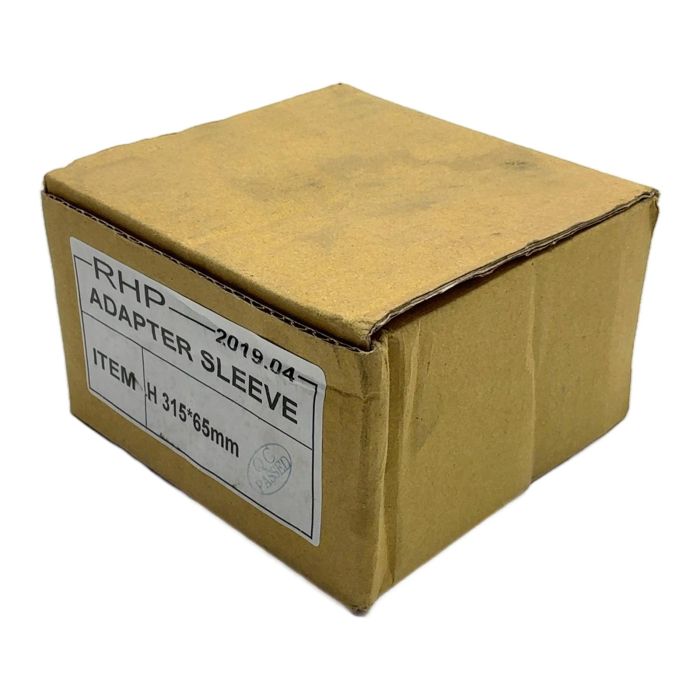

Label Info

• Brand: RHP
• Item: H 315 * 65mm
• Date Code: 2019.04

Application

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat. They can be used on plain or stepped shafts. They are easy to install and require no additional location on the shaft.

Country of Origin

Manufactured by RHP, a brand of NSK Group. Production location may vary.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 2.4 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

A complete H 315 adapter sleeve assembly typically includes the slotted sleeve itself, a KM15 locknut, and an MB15 tab washer for securing the nut.

The bearing is pushed onto the tapered sleeve until the required reduction in radial internal clearance is achieved. The position is then secured by tightening the KM15 locknut and bending one of the tabs of the MB15 washer into a slot on the nut.

Yes, H-series adapter sleeves are manufactured to ISO 2982-1 standards, which ensures full dimensional interchangeability between different premium brands.
