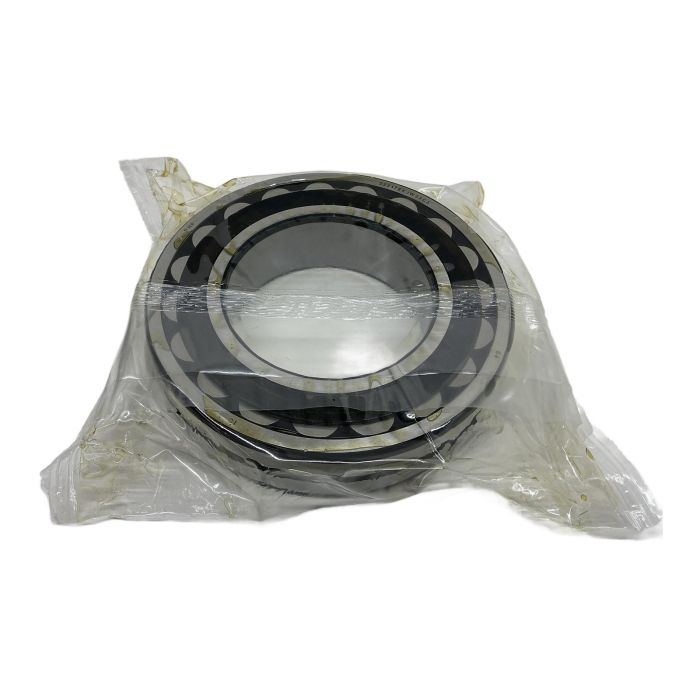

RHP (NSK) 22217EKJW33C3 Spherical Roller Bearing

Description

The RHP 22217EKJW33C3 is a premium-quality spherical roller bearing, part of the renowned NSK Group. This bearing is engineered to handle heavy radial and axial loads in applications prone to shaft misalignment or deflection. Its robust construction with a pressed steel cage and C3 clearance ensures reliability and longevity in demanding industrial environments such as mining, construction, and manufacturing machinery.

Specifications

• Bore Diameter (d): 85 mm
• Outside Diameter (D): 150 mm
• Width (B): 36 mm
• Bore Type: Tapered (1:12)
• Internal Clearance: C3 (Greater than Normal)
• Cage Material: Pressed Steel
• Lubrication Feature: Annular groove and three holes in the outer ring (W33)
• Dynamic Load Rating: 254 kN
• Static Load Rating: 288 kN

Label Info

• Brand: RHP (A member of the NSK Group)
• Part Number: 22217EKJW33C3
• Date of Manufacture: March 2018
• Lot Number: 5528585

Application

This bearing is suitable for a wide range of applications, including gearboxes, wind turbines, continuous casting machines, pumps, fans, and heavy machinery where misalignment and heavy loads are a factor.

CO2 Impact

By purchasing this pre-owned bearing, you contribute to a circular economy and help avoid the emission of approximately 6.7 kg of CO2, which would have been generated during the production of a new unit. This saving is equivalent to the CO2 absorption of a mature tree over several months.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock (NOS) item in its original, sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'K' indicates that the bearing has a tapered bore with a standard taper of 1:12. This design allows for mounting on a tapered shaft or on a cylindrical shaft using an adapter sleeve, providing a secure fit.

'C3' denotes an internal radial clearance that is greater than the 'Normal' (CN) clearance. This extra clearance is necessary in applications where there might be a tight interference fit or where significant temperature differences between the inner and outer rings are expected, preventing the bearing from seizing during operation.

Yes, the W33 feature (annular groove and three lubrication holes in the outer ring) makes this bearing ideal for both grease and oil lubrication. The groove allows lubricant to be introduced efficiently between the roller rows, which is crucial for high-speed or heavy-load applications requiring circulating oil lubrication.
