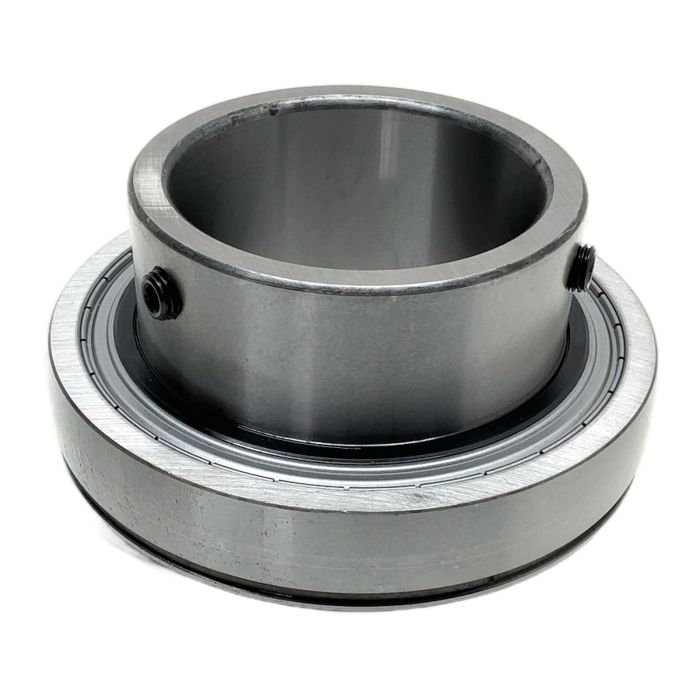

RHP 1090-90G Self-Lube Insert Bearing

Description

The RHP 1090-90G is a high-quality, heavy-duty insert bearing designed for demanding industrial applications. As part of the renowned Self-Lube series, this bearing is pre-lubricated for long service life and features a simple yet effective set screw locking mechanism to secure it to a 90mm shaft. Its spherical outer race allows it to compensate for initial static misalignment when mounted in a suitable pillow block or flange housing.

Specifications

• Manufacturer: RHP (A member of the NSK Group)
• Model: 1090-90G
• Product Type: Ball Bearing Insert
• Bore Diameter: 90 mm
• Locking Type: Set Screw Locking
• Outer Race: Spherical
• Sealing: Integrated seals for protection against contaminants

Label Info

• Brand: RHP bearings
• Part Number: 1090-90G
• Series: Self-Lube

Application

This bearing insert is ideal for use in agricultural machinery, conveyor systems, construction equipment, and other general industrial machinery where reliability and simple installation are required.

Country of Origin

RHP is a historic British brand, now part of the global NSK Group with manufacturing facilities worldwide.

CO2 Impact

Choosing this reused bearing over a new one prevents the emission of approximately 10.0 kg of CO2, which is comparable to the emissions from a 50 km car journey. This sustainable choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. It is a new-old-stock product in its original, opened box. Order now from PLC2Day for expert support and fast delivery.

FAQ

For a 90mm bore bearing like the RHP 1090-90G, the set screws are typically M12 or M14. The recommended tightening torque would be in the range of 29-35 Nm, but it is crucial to consult the manufacturer's specific installation guide to prevent shaft damage or insufficient locking force. Always tighten the screws alternately to ensure even pressure.

Yes, RHP Self-Lube bearings like the 1090-90G are typically designed to be relubricatable. They are factory-filled with a high-quality lithium-based grease suitable for a wide range of operating temperatures and speeds. For relubrication, it is best to use a similar NLGI 2 or NLGI 3 lithium complex grease to ensure compatibility. Avoid mixing grease types.

The spherical (convex) outer diameter of the 1090-90G allows it to be mounted in a housing with a corresponding spherical (concave) bore. This design feature permits the bearing to swivel within the housing, accommodating initial static misalignment of the shaft up to a few degrees. This simplifies installation and reduces stress on the bearing caused by minor mounting inaccuracies.
