Rexroth ZDREE 10 Proportional Pressure Reducing Valve

Description

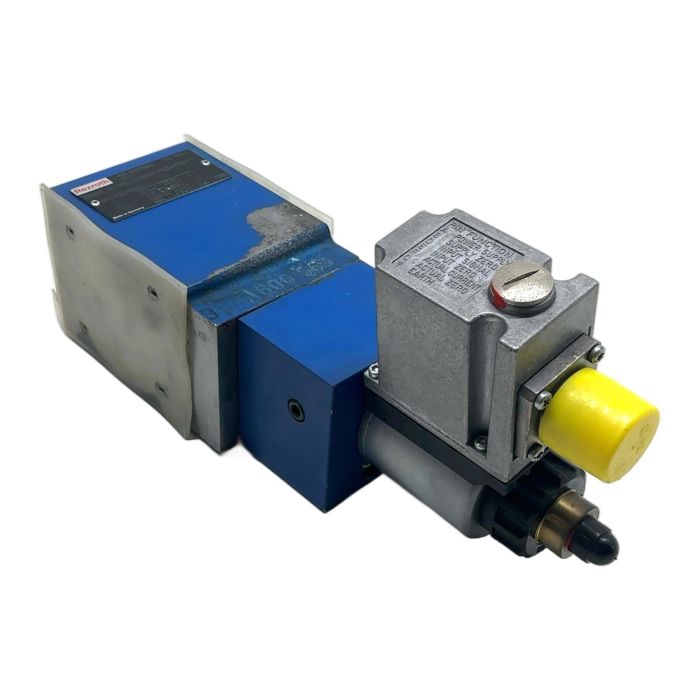

This is a ZDREE 10 series pilot-operated proportional pressure reducing valve by Rexroth. It is engineered for subplate mounting and provides precise control of hydraulic pressure. This model includes integrated electronics (OBE) for easy integration into automated systems and features a manual override for setup and emergency operations. Its robust construction ensures long-term reliability in industrial environments.

Specifications

• Manufacturer: Rexroth
• Type: ZDREE 10 VP2-2X/100XLMG24K31A1M
• Size: NG10
• Mounting Pattern: ISO 6264-AR-06-2-A
• Maximum Reduced Pressure: 100 bar
• Solenoid Voltage: 24V DC
• Control: On-Board Electronics (OBE) with 0 to 10V command signal
• Connection: Plug-in connector to DIN EN 175301-803

Label Info

• MNR: R901198304
• FD: 98513
• Made in Germany

Application

Ideal for applications in machine tools, plastic processing machines, presses, and general industrial machinery where precise and dynamic control of hydraulic pressure is required.

Country of Origin

Made in Germany

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 78 kg of CO2 emissions. This saving is comparable to the emissions from driving a standard passenger car for 390 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'A1' version of the on-board electronics (OBE) is designed for a differential amplifier input, typically a voltage command signal ranging from 0 to +10V DC. Refer to the Rexroth datasheet for precise pinout and impedance details.

Yes, this specific model ('...M' at the end) includes a manual override. This allows for setting or actuating the valve manually for emergency operation or system setup without electrical power. However, for proportional control, the electronic solenoid must be energized and controlled.

'VP2' defines the hydraulic function and porting pattern. For this ZDREE 10 valve, it specifies pressure reduction in port P1 and conforms to the ISO 6264-AR-06-2-A mounting standard. This ensures it fits correctly on a standard NG10 subplate with the appropriate port configuration.
