Rexroth NG10 Hydraulic Throttle Check Valve

Description

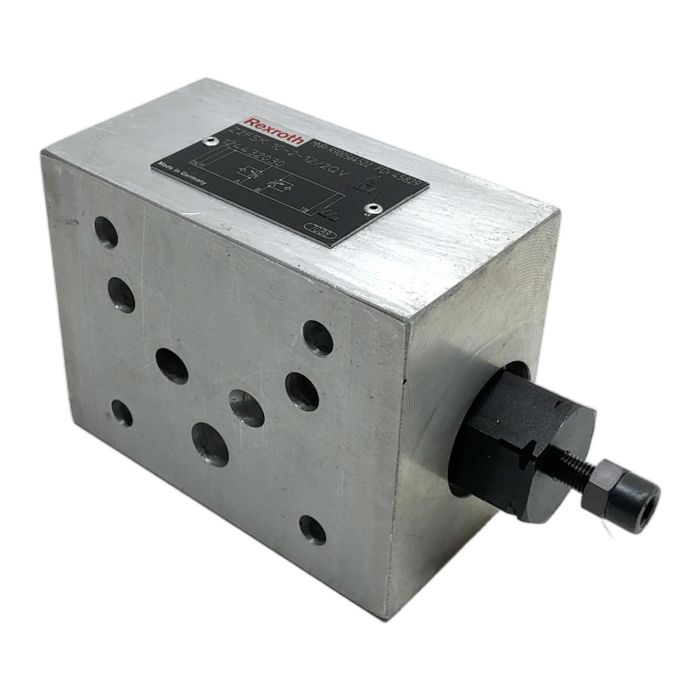

This is a Z2FSK 10-2-12/2QV sandwich plate throttle check valve from Bosch Rexroth. It is designed for mounting in vertical stacking assemblies to limit the main or pilot flow of one or two actuator ports. This NG10 (CETOP 05) valve provides reliable and precise speed control for hydraulic actuators by throttling the flow in one direction and allowing free flow in the opposite direction.

Specifications

• Manufacturer: Rexroth
• Type: Z2FSK 10-2-12/2QV
• Material Number: R900564522
• Component Series: 1X
• Size: NG10 (CETOP 05)
• Mounting pattern: ISO 4401-05-04-0-05
• Maximum operating pressure: 315 bar (4568 PSI)
• Maximum flow: 160 l/min (42 GPM)
• Adjustment type: Screw with lock nut
• Hydraulic fluid: Mineral oil (HL, HLP) according to DIN 51524, synthetic fluids (HFD)
• Seal material: FKM (Viton)

Label Info

• MNR: R900564522
• FD: 45829
• Type: Z2FSK 10-2-12/2QV
• Serial: 124432030

Application

This valve is commonly used in industrial hydraulic systems for controlling the speed of cylinders and motors, for applications in machine tools, presses, plastic injection molding machines, and general manufacturing equipment.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of approximately 5.8 kg of CO2, which is comparable to driving a car for 29 kilometers. This promotes a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the '2Q' in the type code Z2FSK 10-2-12/2QV signify?

The '2Q' refers to the hydraulic circuit symbol. It indicates a double throttle-check valve with throttling in the meter-out direction for both service ports A and B, typically used for controlling the speed of a hydraulic actuator in both directions.

This valve uses the NG10 (also known as CETOP 05 or D05) mounting pattern, which conforms to ISO 4401-05-04-0-05 and DIN 24340 Form A standards. This ensures compatibility with other standard NG10 subplates and valves.

The 'V' indicates that the valve is fitted with FKM (Viton) seals. These seals are suitable for use with mineral oils (HL, HLP), synthetic fluids (HFD), and have excellent high-temperature resistance, but they are not recommended for use with glycol-based fluids or hot water.
