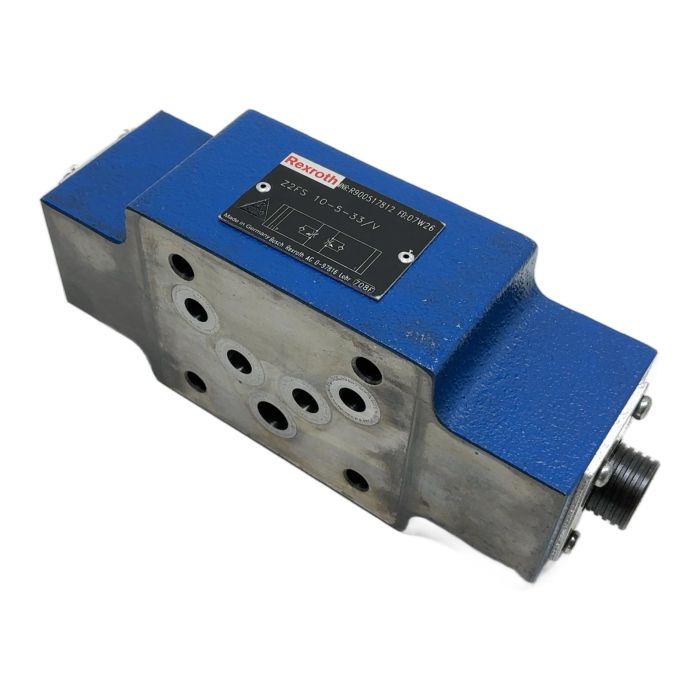

Rexroth Z2FS 10-5-33/V NG10 Hydraulic Valve

Description

This is a pilot-operated throttle check valve, model Z2FS 10-5-33/V, from Bosch Rexroth. It is a sandwich plate valve of nominal size 10 (NG10), designed for precise and reliable flow control in hydraulic systems. Its primary function is to limit the flow of hydraulic fluid in one direction while allowing free flow in the opposite direction, commonly used for meter-out control.

Specifications

• Manufacturer: Rexroth (Bosch Rexroth AG)
• Type Number: Z2FS 10-5-33/V
• Material Number: R900517812
• Valve Type: Pilot-operated throttle check valve
• Design: Sandwich plate
• Nominal Size: NG10 (CETOP 5 / ISO 4401-05)
• Control Type: Meter-out
• Seals: FKM (Viton)
• Maximum Operating Pressure: 315 bar

Label Info

• FD (Factory Date): 07W26
• Factory Code: 708F

Application

This valve is widely used in industrial hydraulics, including machine tools, presses, and manufacturing equipment, to control actuator speed and manage system pressure.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned valve over a new one prevents approximately 7.0 kg of CO2 emissions associated with manufacturing a new steel component.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

NG10 refers to the nominal size of the valve, corresponding to a standard porting pattern according to ISO 4401-05-04-0-05 and CETOP RP121H-R05. This ensures interchangeability with other NG10 components.

The "/V" suffix indicates that the valve is fitted with FKM (Viton) seals. These are suitable for use with mineral oils (HL, HLP), synthetic fluids (HFD), and have excellent temperature and chemical resistance.

This particular model, Z2FS 10-5-33/V, does not feature an external adjustment mechanism. It is a pilot-operated check valve. Flow control is managed by the pilot pressure signal, not by a manual knob or screw.
