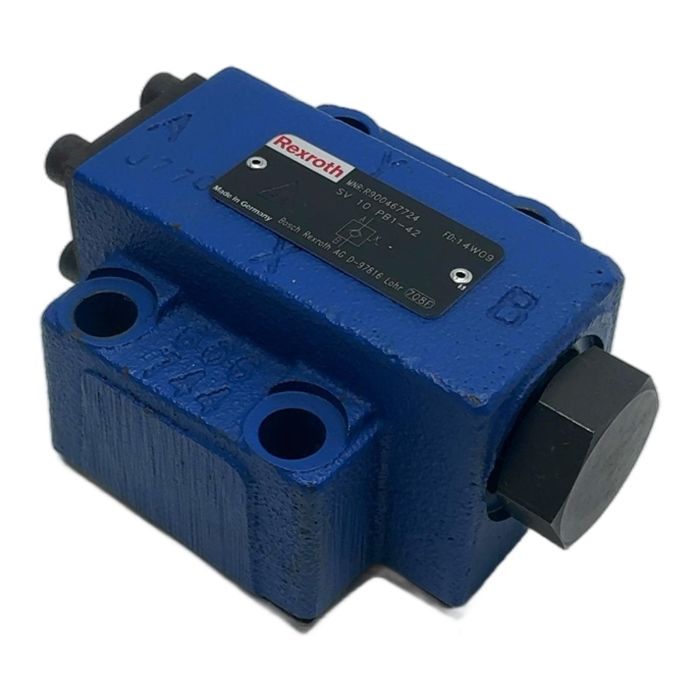

Rexroth NG10 Pilot-Operated Check Valve

Description

The Rexroth SV 10 PB1-42 is a high-performance, pilot-operated check valve designed for sandwich plate mounting in hydraulic systems. With a nominal size of NG10, it adheres to CETOP 5 standards, ensuring broad compatibility. This valve is engineered to provide leak-free blocking of one or two actuator ports, making it essential for applications that require reliable load holding and safety functions. Its robust construction guarantees a long service life even under demanding operating conditions. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Rexroth
• Type: SV 10 PB1-42
• Material Number (MNR): R900467724
• Component Series: 4X (42)
• Size: NG10 (CETOP 5)
• Maximum Operating Pressure: 315 bar (4568 psi)
• Maximum Flow: 120 l/min
• Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524

Label Info

• MNR: R900467724
• Model: SV 10 PB1-42
• FD: 14W09

Application

This valve is widely used in industrial hydraulic systems, including machine tools, presses, injection molding machines, and material handling equipment, where precise and secure control of actuators is critical.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you help avoid the production of a new one, saving an estimated 4.4 kg of CO2. This is comparable to the emissions from a 22 km car journey.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The 'X' port is the external pilot pressure port. Applying hydraulic pressure to this port opens the check valve, allowing fluid to flow in the normally blocked direction.

The maximum operating pressure is 315 bar (4568 psi), and the maximum permissible flow rate is 120 liters per minute.

Yes, the SV 10 PB1-42 features a porting pattern according to ISO 4401-05-04-0-05, making it fully compatible with standard NG10 / CETOP 5 subplates and valve stacks.
