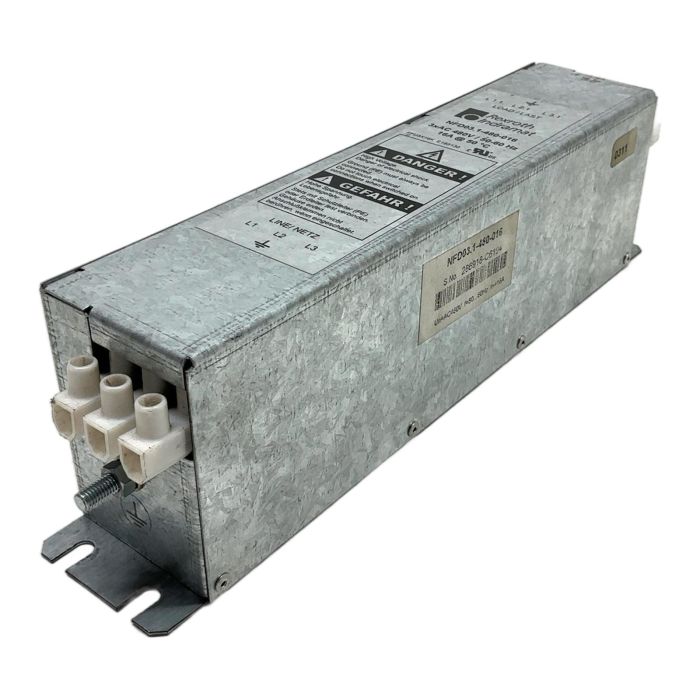

Rexroth Indramat NFD03.1-480-016 Mains Filter

Description

The Rexroth Indramat NFD03.1-480-016 is a robust and reliable mains filter designed to ensure electromagnetic compatibility (EMC) for industrial drive systems. It effectively suppresses conducted interference, protecting your sensitive equipment and ensuring stable machine operation. This filter is a crucial component for legacy systems utilizing Rexroth DIAX and EcoDrive controllers.

Specifications

• Manufacturer: Rexroth Indramat
• Model: NFD03.1-480-016
• Rated Voltage: 3x 480V AC
• Rated Current: 16A at 50 deg C
• Frequency: 50-60 Hz
• Phase: 3-Phase

Label Info

• Type: NFD03.1-480-016
• S.No: 286918-C6194

Application

This mains filter is specifically designed for integration with Rexroth Indramat servo drives and frequency converters, such as the DIAX04 and EcoDrive series. It is commonly used in machine tools, printing presses, and automated manufacturing lines to meet EMC requirements.

Country of Origin

Made in Germany.

CO2 Impact

By reusing this part, you avoid approximately 100 kg of CO2 emissions associated with the production of a new one. This is equivalent to charging a smartphone over 12,000 times.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What drive series is the NFD03.1-480-016 filter compatible with?

This mains filter is primarily designed for use with the legacy Rexroth Indramat DIAX04 and EcoDrive series of servo drives and controllers. It is not directly compatible with the newer IndraDrive systems without verification.

What is the purpose of this mains filter in an automation setup?

The NFD03.1-480-016 is an EMC (Electromagnetic Compatibility) filter. It is installed between the main power supply and the drive to reduce conducted high-frequency interference, helping the system comply with international EMC regulations and preventing disturbances to other nearby electronic equipment.

Does this filter require any specific mounting orientation?

For optimal performance and safety, it should be mounted on a conductive, grounded backplate inside the control cabinet, as close to the drive's power input as possible. This ensures a low-impedance path to ground for filtered noise.
